Glass Systems

Glass Door Closures 144

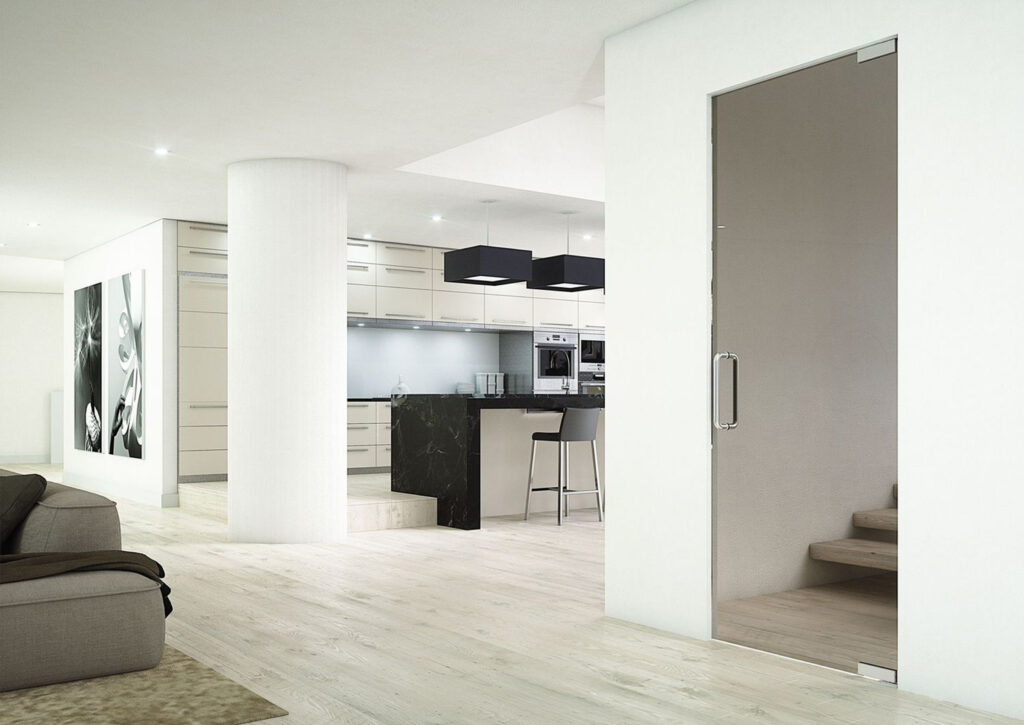

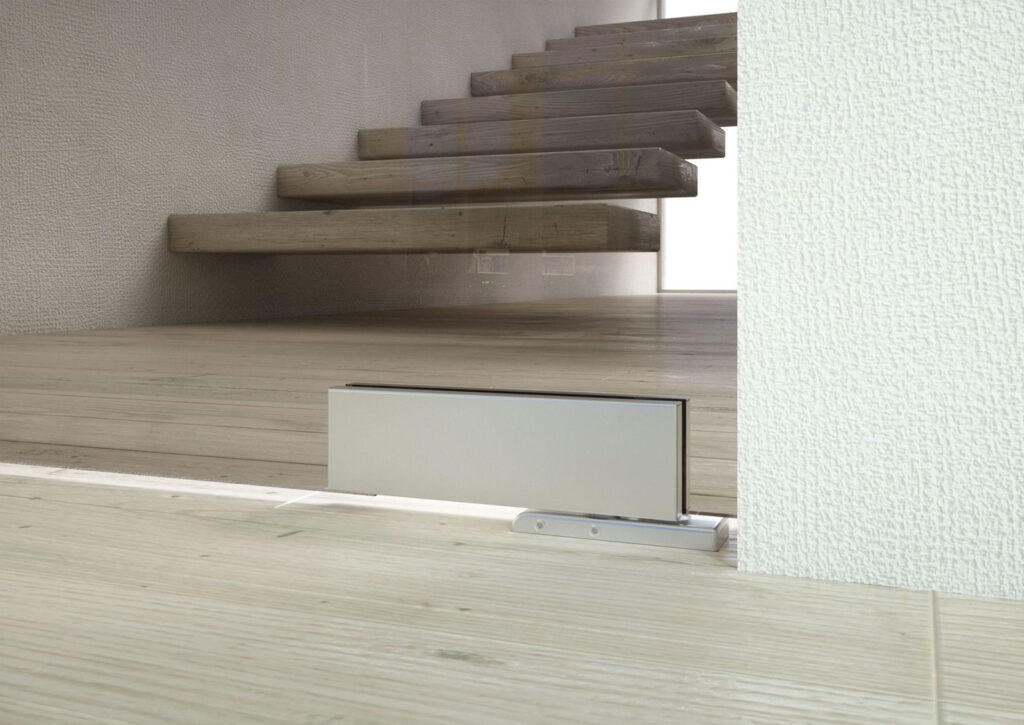

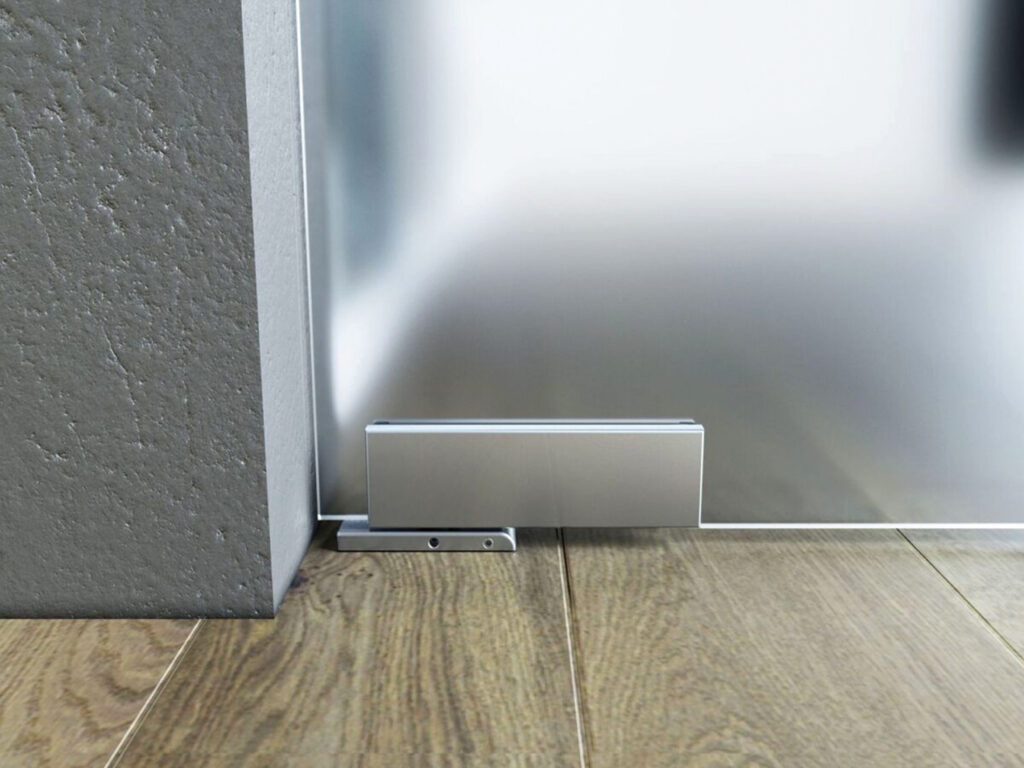

Unica Slim Hydraulic door closure

8 – 13.52 mm

1000 mm max

80 Kg max.

-5 C

+ 40 C

Hydraulic hinge with predetermined, non-modifiable automatic closing. Stop at 0° +90° -90°. Suitable for doors with a stop as well. Combining the lower hinge with the upper one allows the reduction of closing speed of some seconds.

Unica Slim is the new oil dynamic door closer hinge with automatic closing.

Features:
• Reduced dimensions and minimal design;
• Closing speed is pre-set and it is possible to make it slower;
• Suitable for inner applications;
• 0° point regulation;
• Turning point regulation;
• Quick-fixation finishing covers;
• Satin and polished stainless steel covers.

With an excellent quality-price ratio, Unica Slim is sold in combination with the related upper hinge (106E20/27), which has the same dimensions.

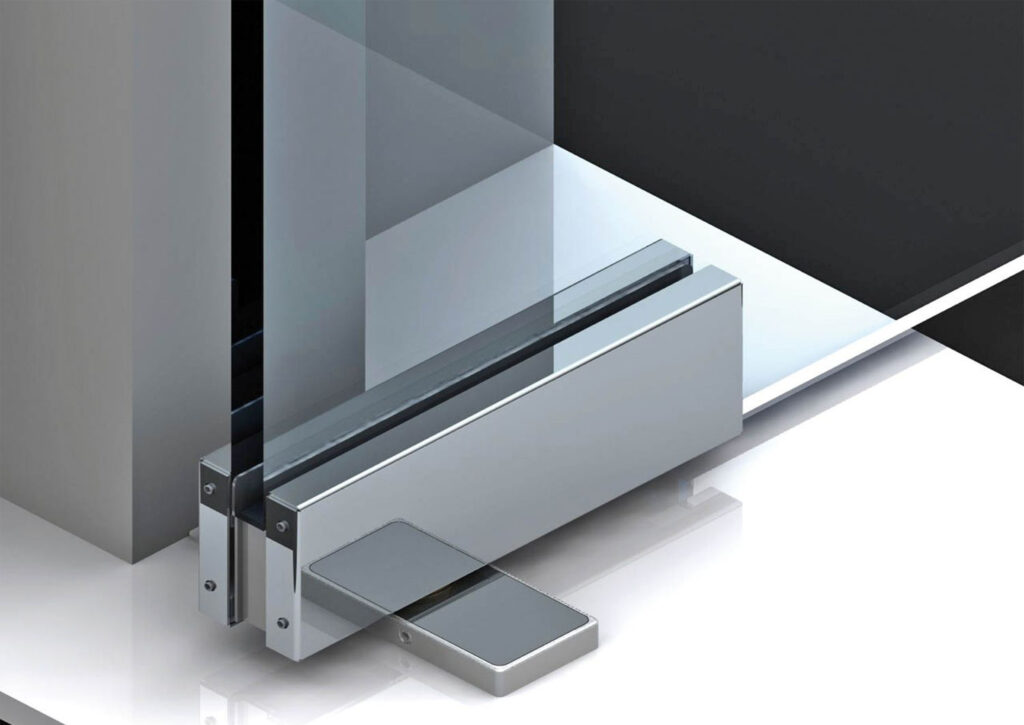

Biloba Unica NF

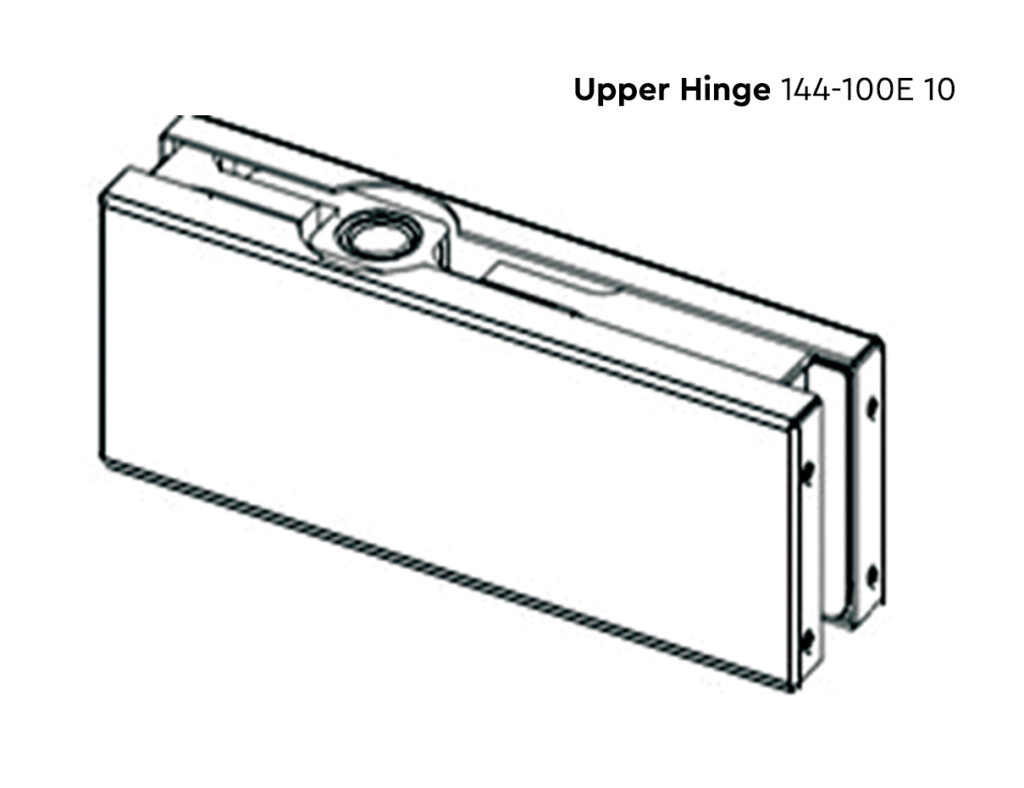

Biloba Unica NF Hydraulic door closure

8 – 13.52 mm

1000 mm max

100 Kg max.

-10 C

+ 50 C

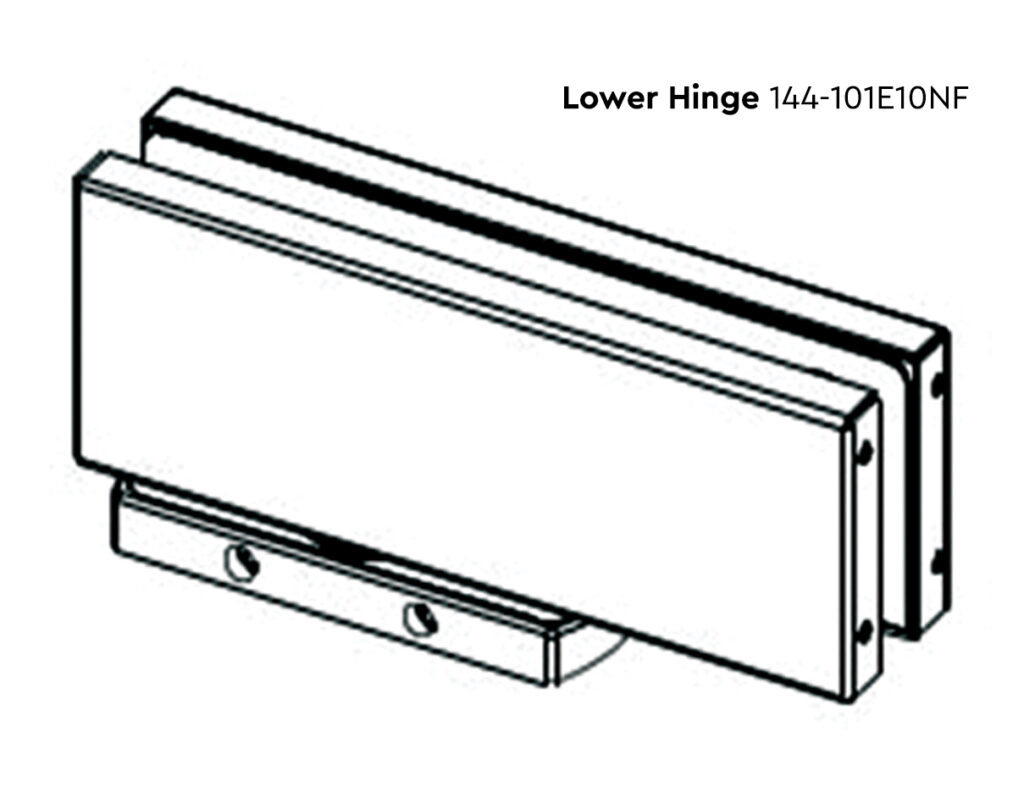

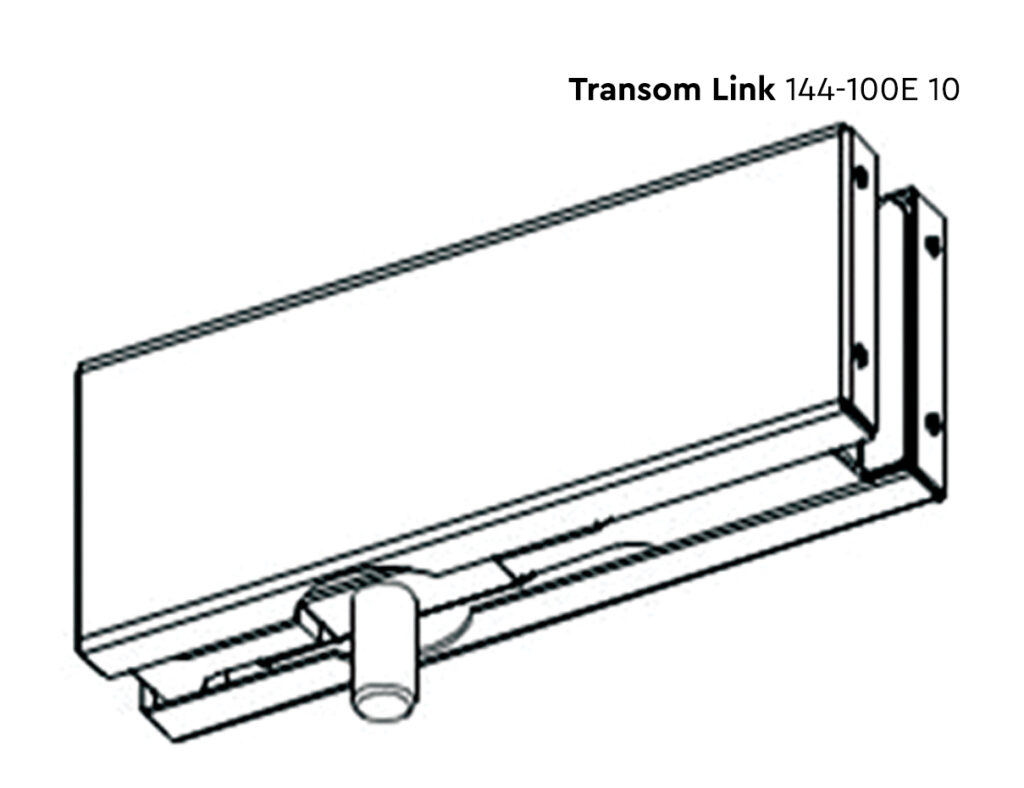

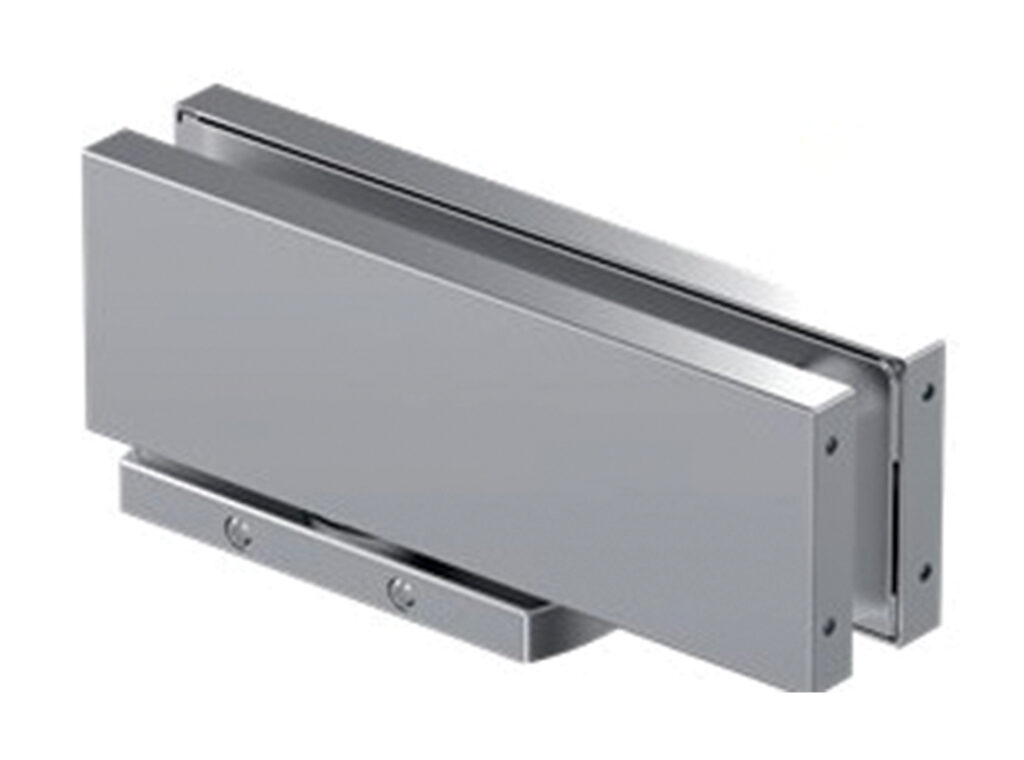

Hydraulic hinge without brake but with closing speed & final latch adjustments. Can be combined with all patch fittings of the Maxima series. Useful also for pivoting applications. Stop at 0° +90° -90°

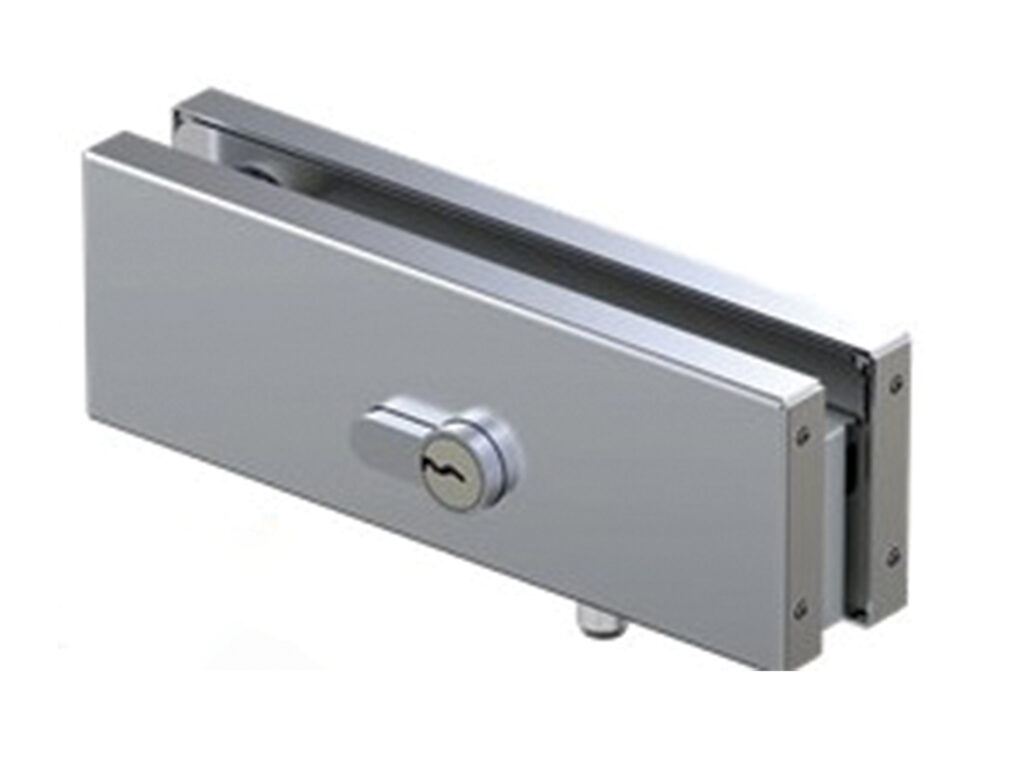

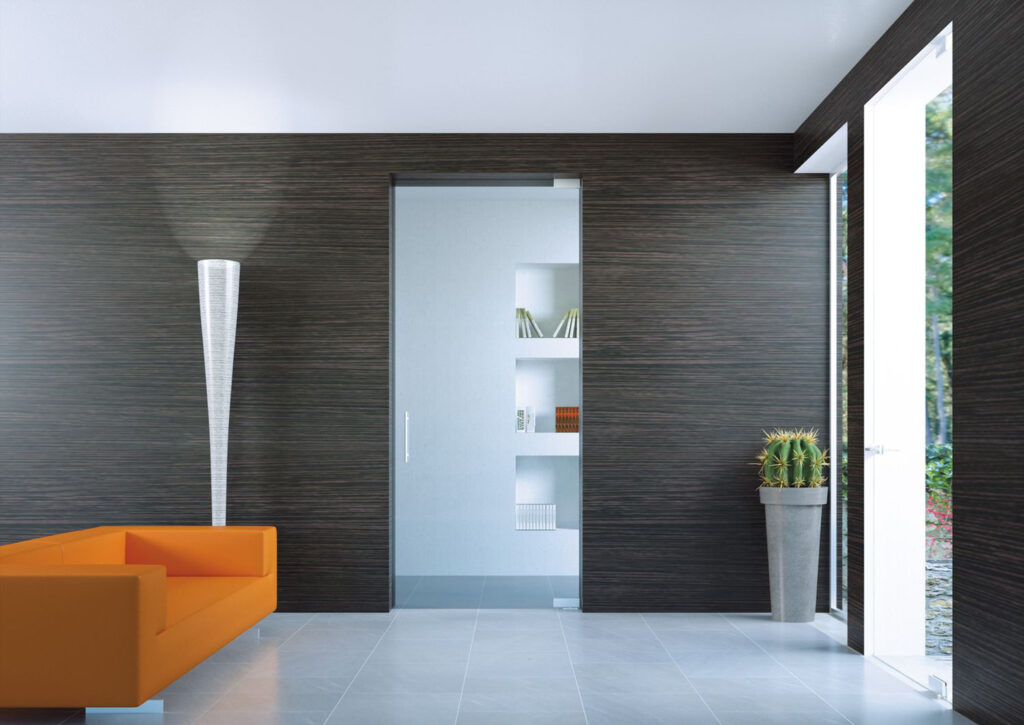

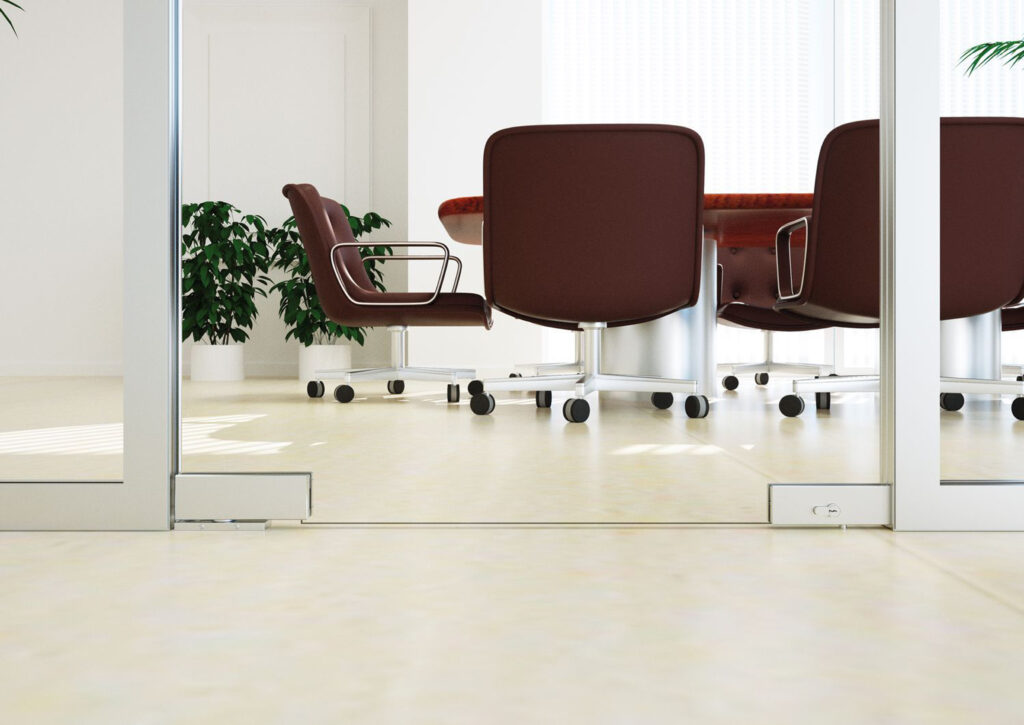

Version for internal doors and associated lock

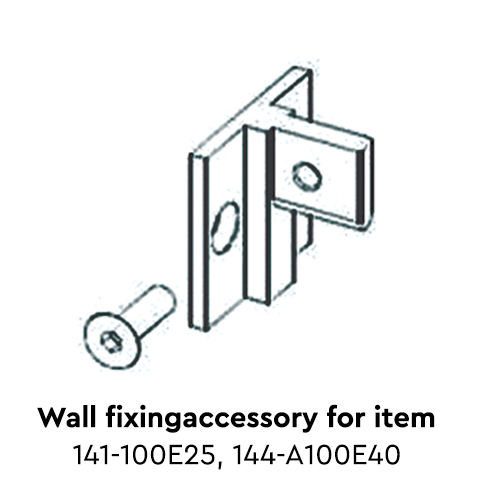

The series Biloba Unica by Colcom, whose chacteristic is the automatic, constant and controlled closing of the door, adds new products. The Unica hinge for internal doors, the lock and the chance of having fixing plate to the floor with essential and elegant shapes and dimensions. Plates’ colors can be chosen and customized.These new products combine a high technical quality and minimal design with the safe movement of the door.

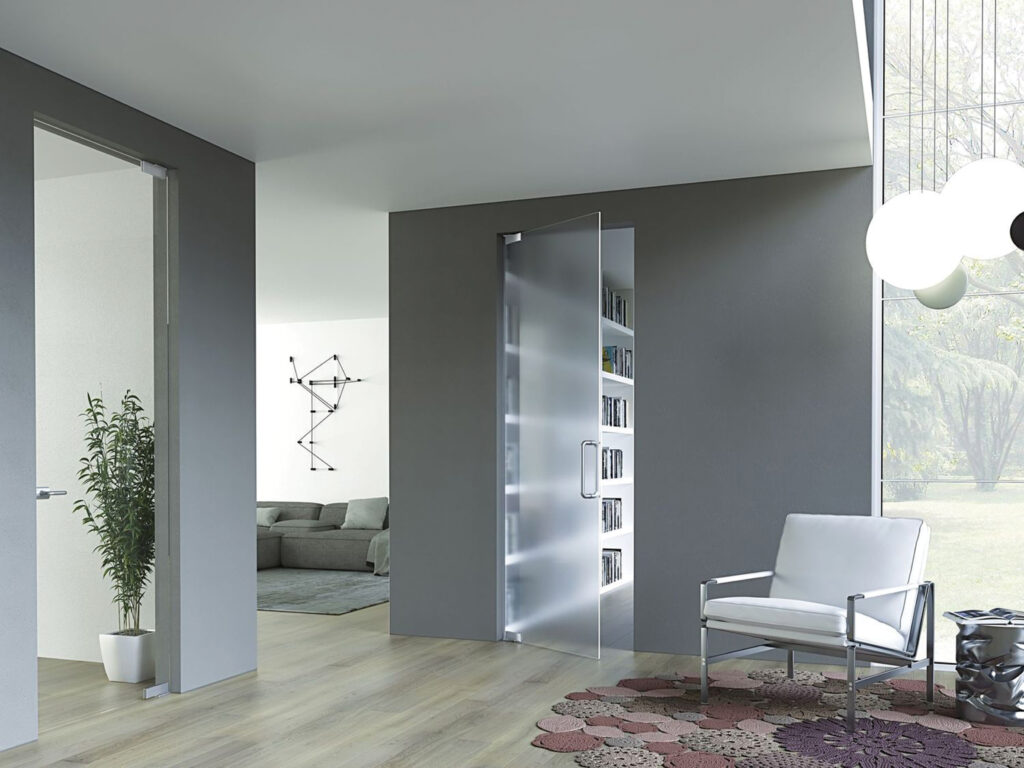

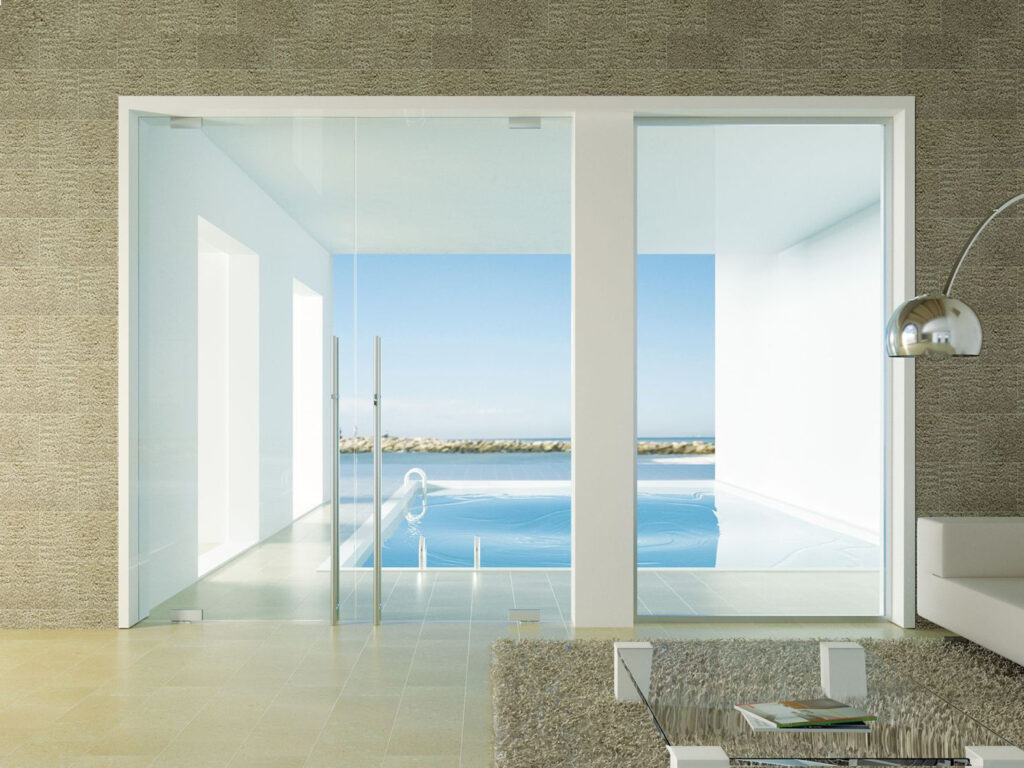

Biloba Unica

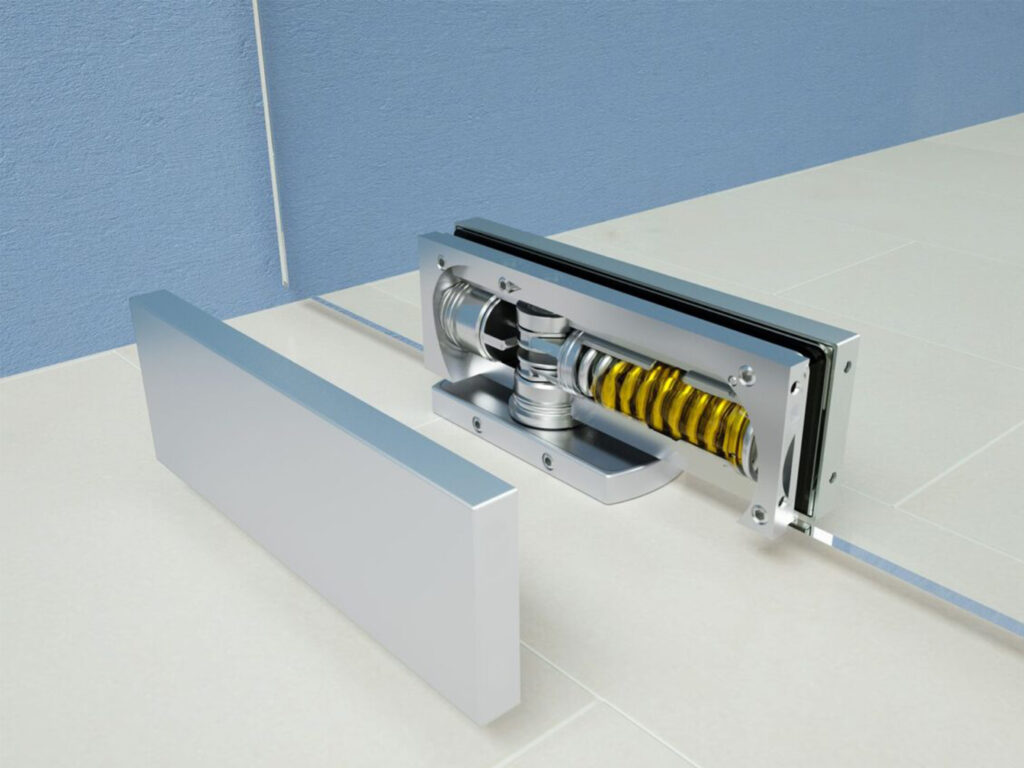

Biloba Unica Hydraulic door closure

8 – 13.52 mm

1000 mm max

100 Kg max.

-10 C

+ 50 C

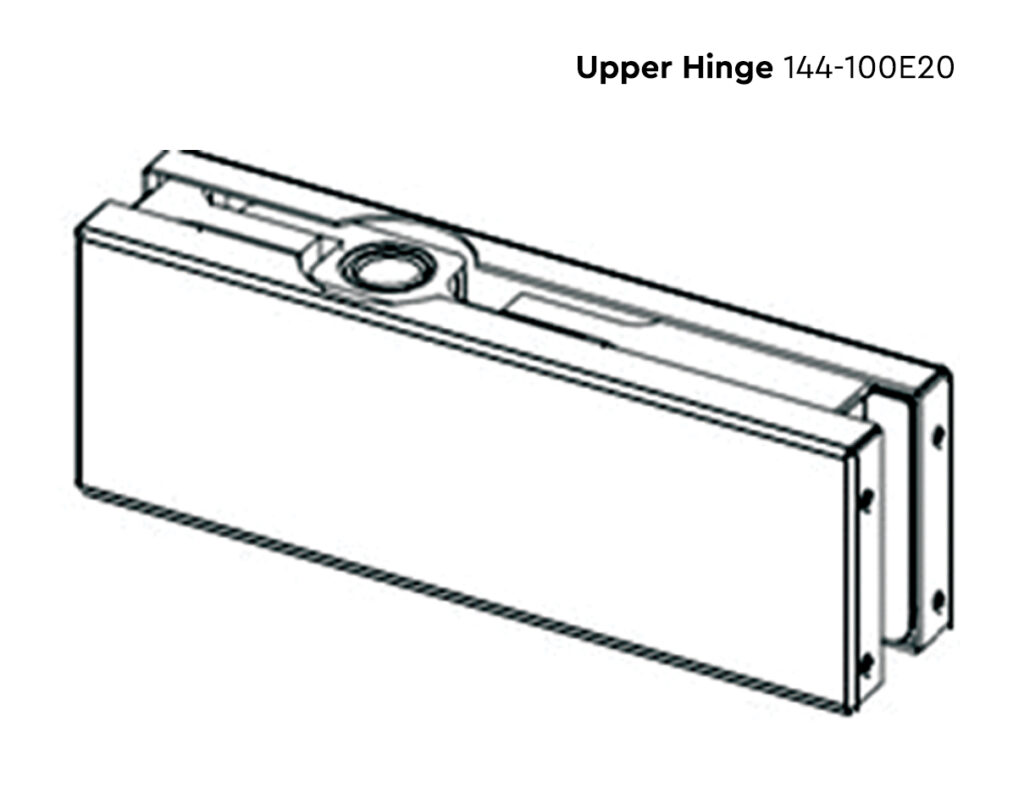

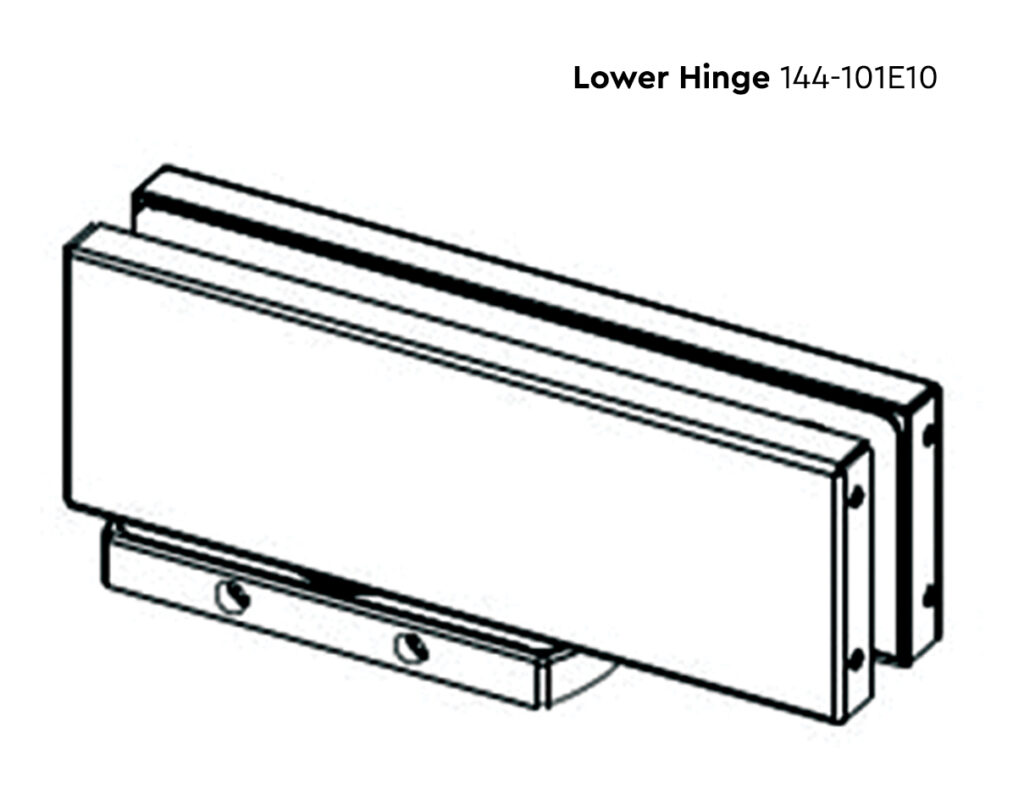

Its essential design allows its installation in any type of setting, both outdoor and indoor. In UNICA we have: brake, closing speed adjuster and final latch in a space only 56mm high. Easy and quick mounting. It can satisfy pivot applications, too. Floor plate with integrated tilting system. Covered by international patent.

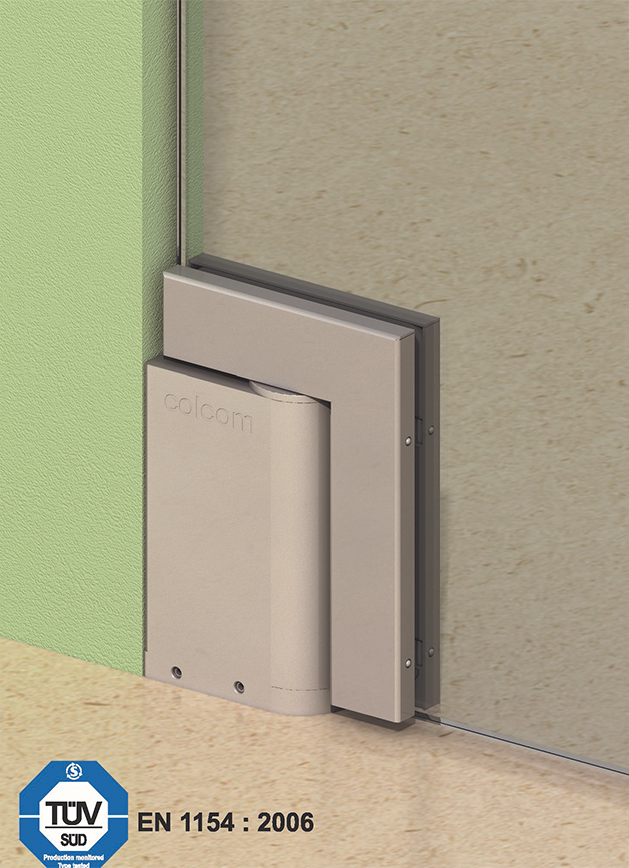

Triloba

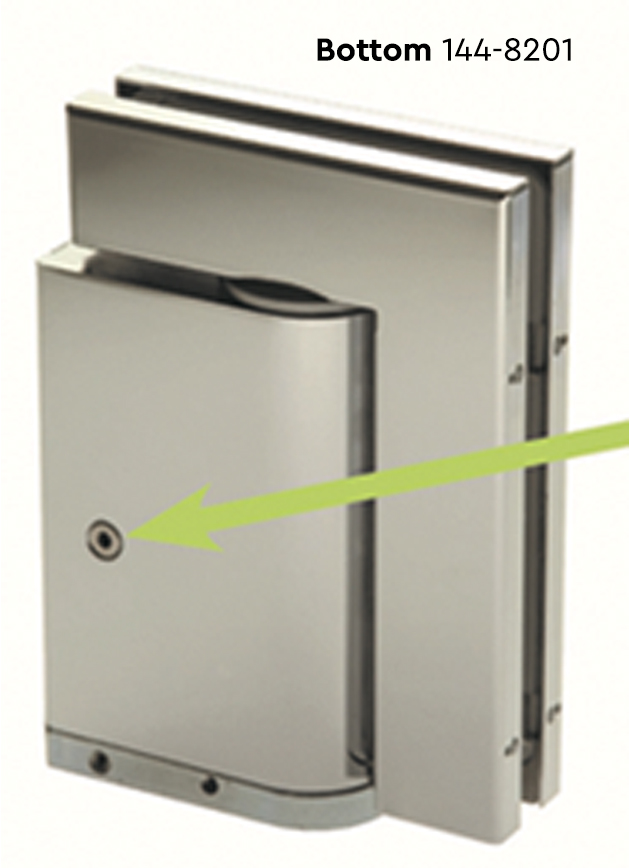

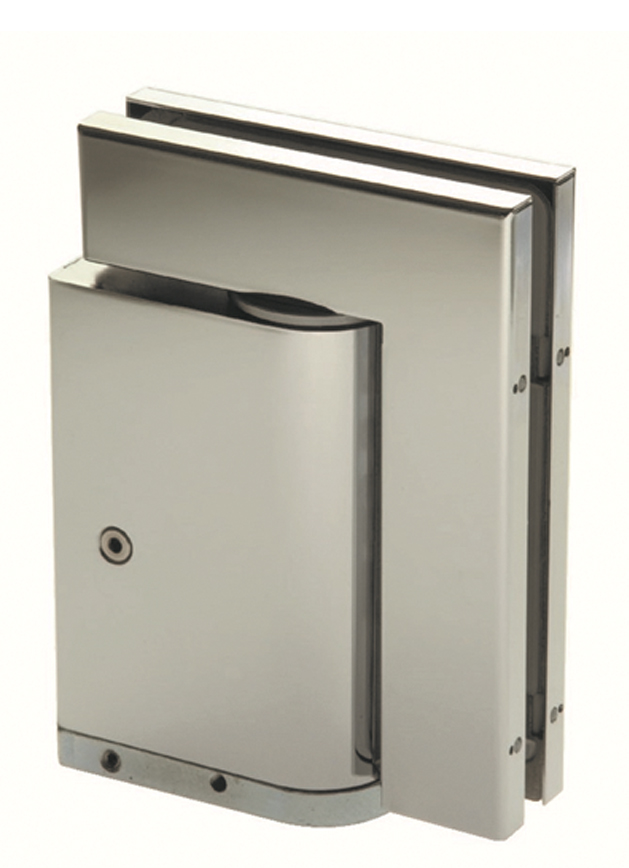

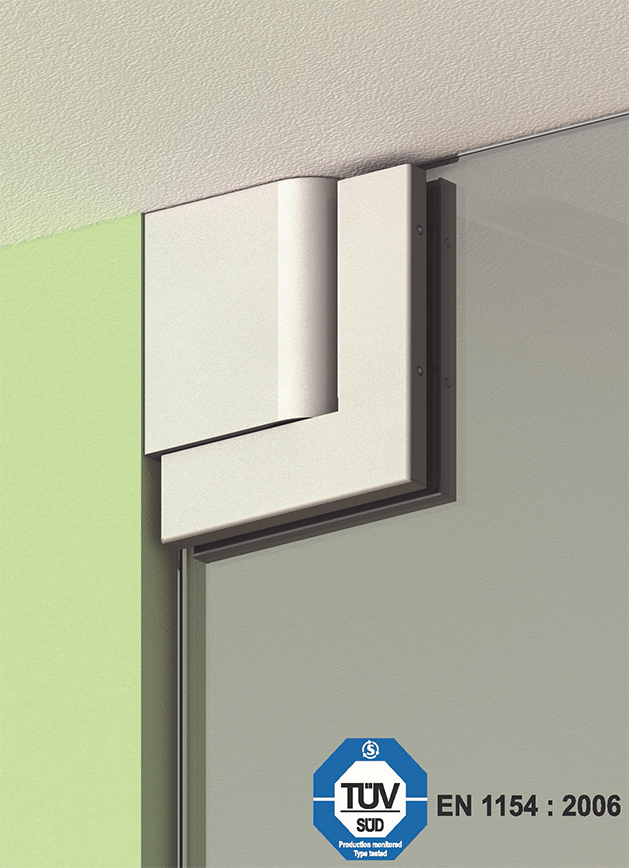

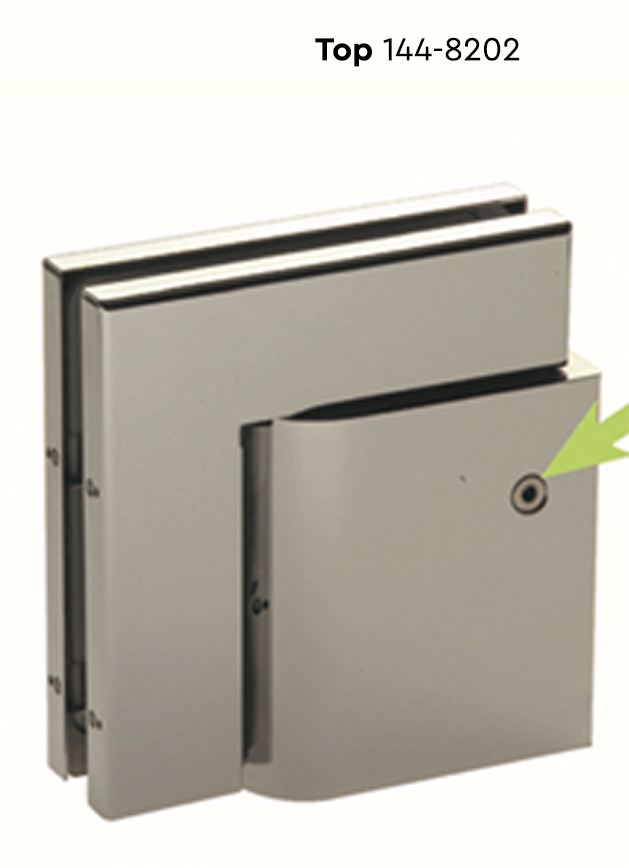

Triloba Hydraulic door closure

10 – 12 mm

1200 mm max

150 Kg max.

-15 C

+ 40 C

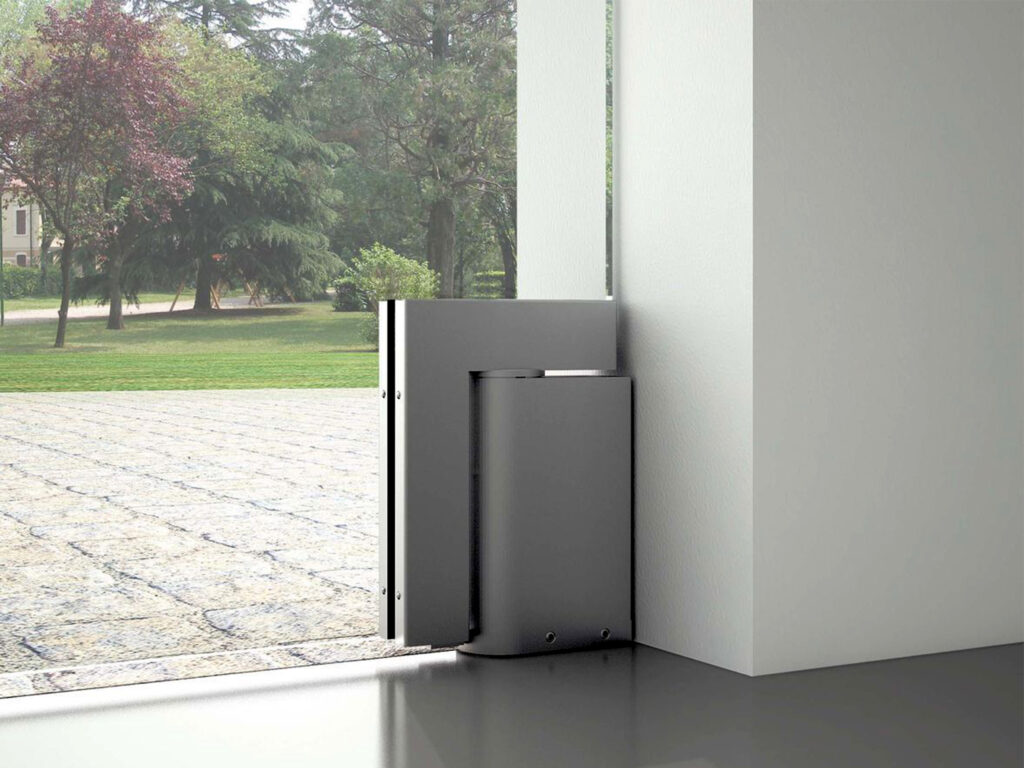

The evolution of the traditional door closers, an innovative product which allows a fast and simple installation.

Floor breaking or an aesthetic air door closers are no more necessary. Main feature of this oil dynamic hinge designed for outer doors is the possibility to adjust the braking valves with anti-wind and safety function. Triloba has a minimal and elegant design thanks to its reduced mechanism, it is the best solution for elegant installations. The product and the main applications are covered by international patent.

• Oil dynamic hinge with adjustment of the closing speed of the door. Stop at 0° +90° -90

  • Oil dynamic hinge with control valve for brake.

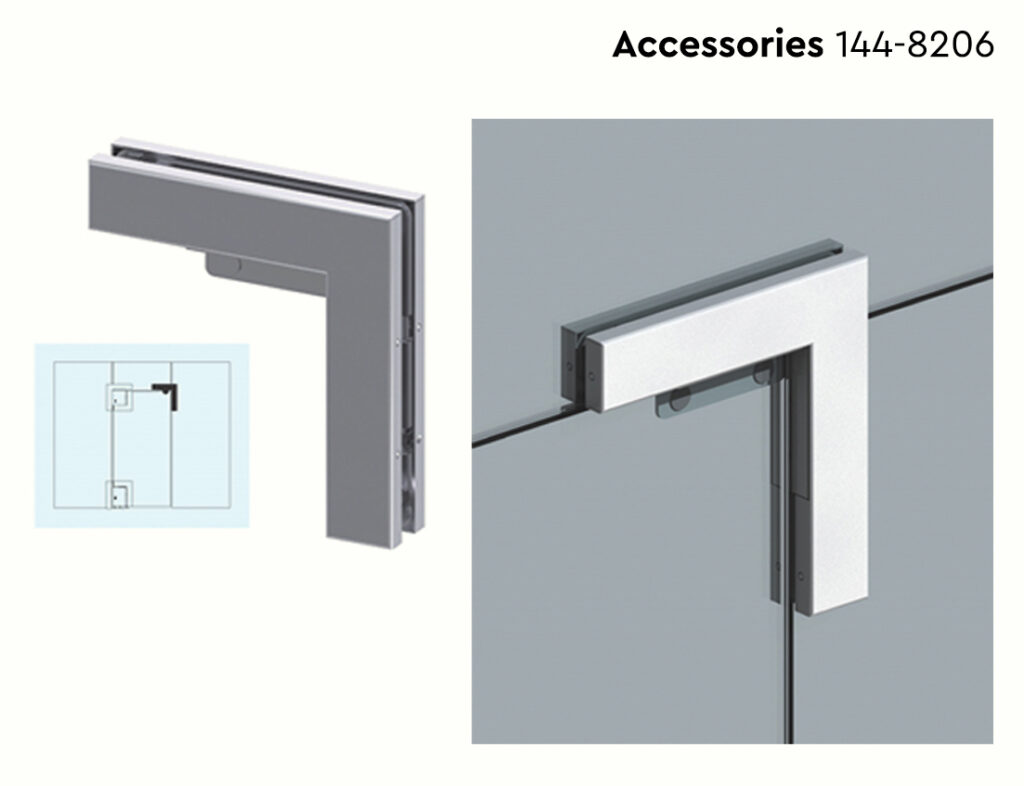

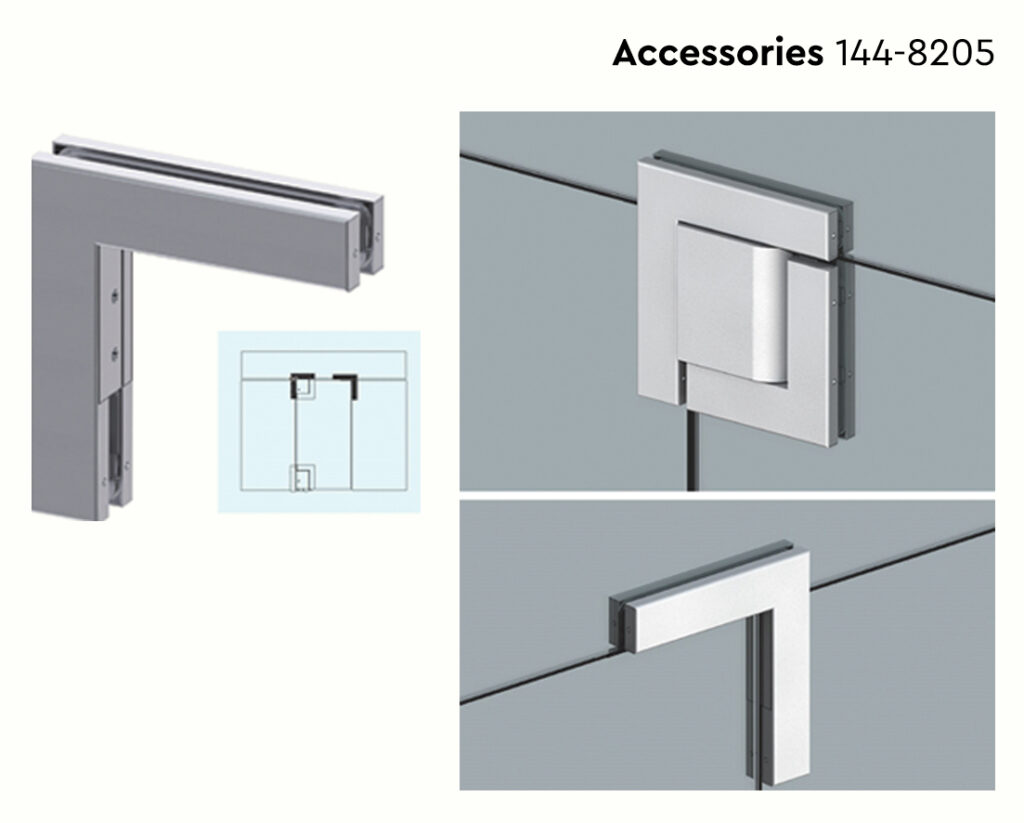

Upper segment attachment-side glass without stop

  • • Upper segment attachment-side glass with stop.
