Glass Systems
Locks and Handles 145
LOQ Series
LOQ Handle Series

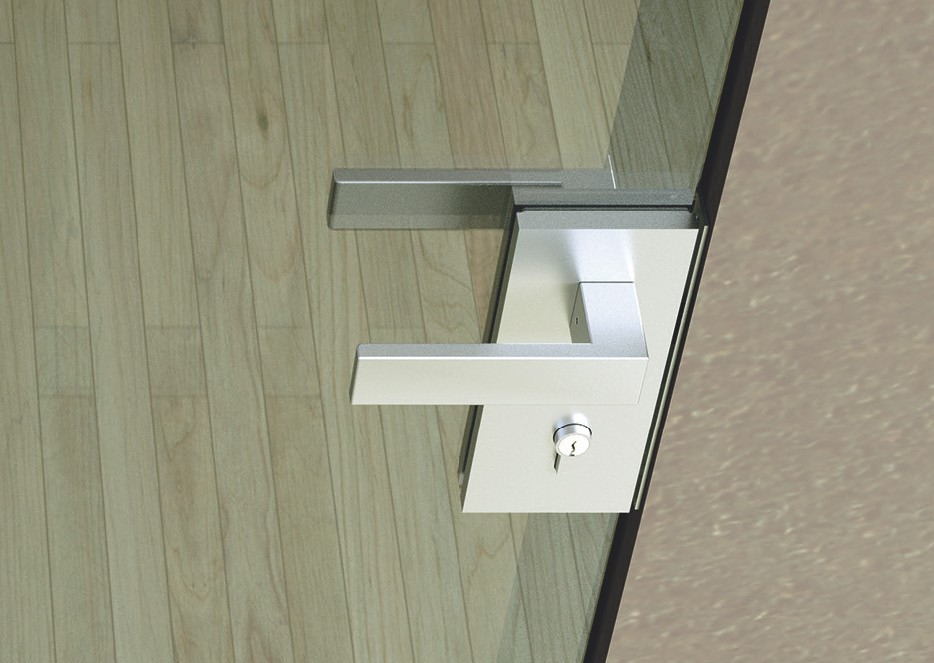

- OQ by Colcom is the new line of locks for glass doors which extends and completes the product range. LOQ series is suitable on any kind of application on a door jamb. Subtle forms and simple lines emphasize its design on glass doors. Each lock has a latch mechanism, handle hole and a safety lock.
- LOQ series is available polished stainless steel and satin according to Col-com’s standard finishes.
- Softness and reliability:
- The great softness and closing precision are the peculiar characteristics of series LOQ with the handle, key and safety lock moving fluidity. Technology, functionality and design in LOQ series locks create a perfect balance both at home and in the office.
- Cylinder and handle can be ordered separately in three different types which can be chosen according to installation needs.

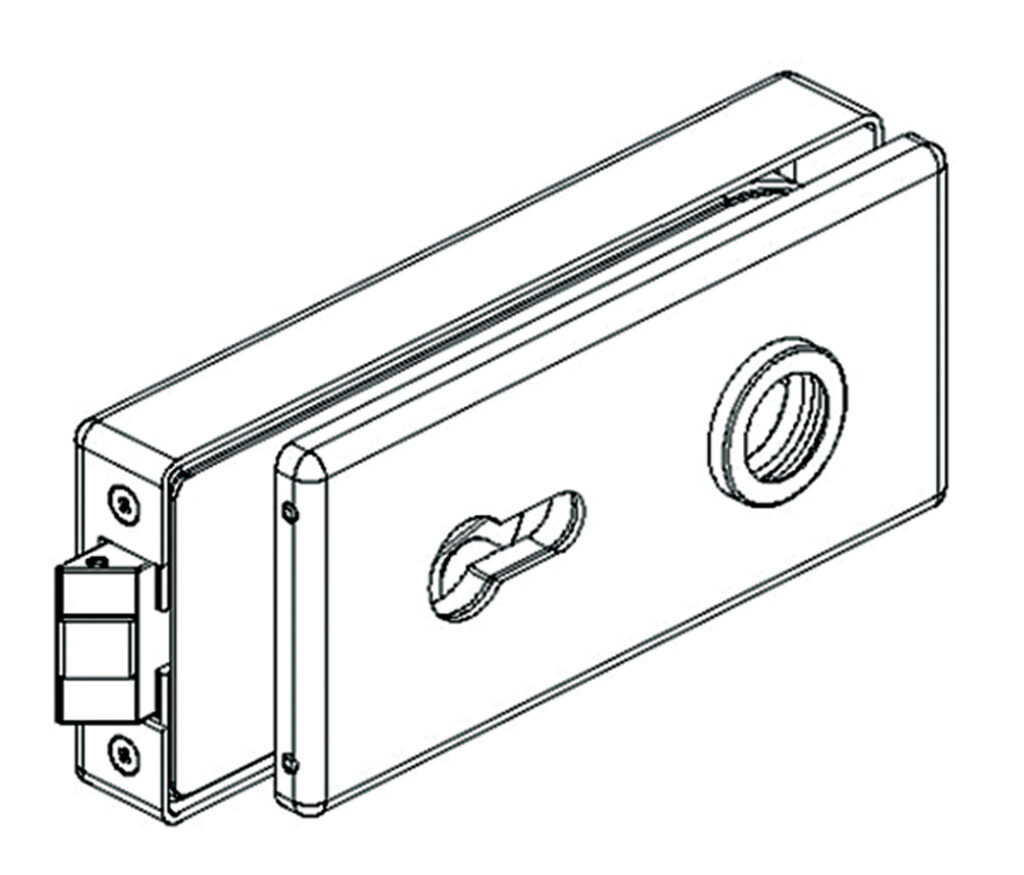

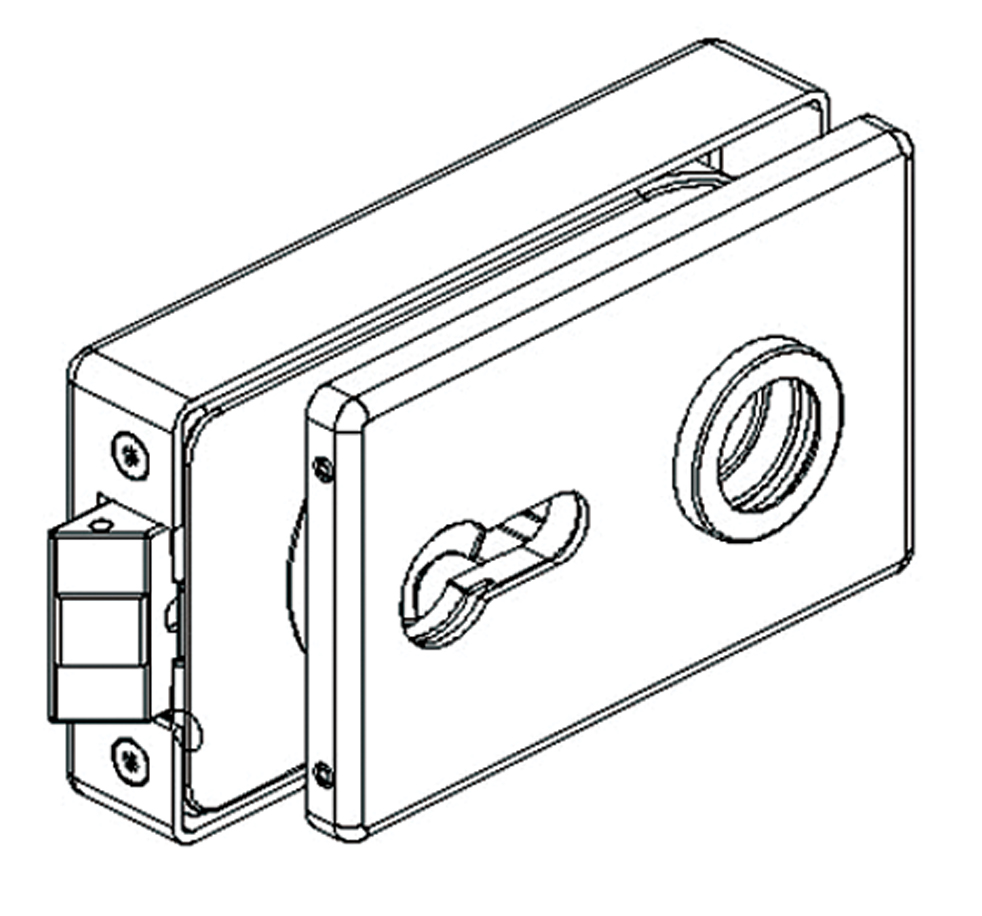

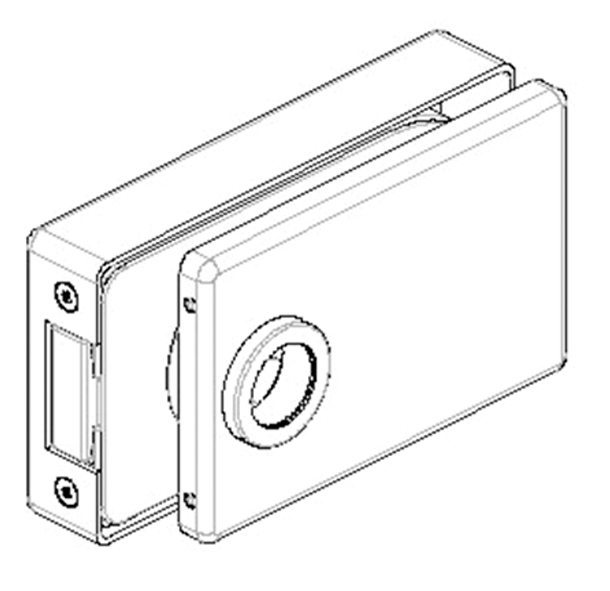

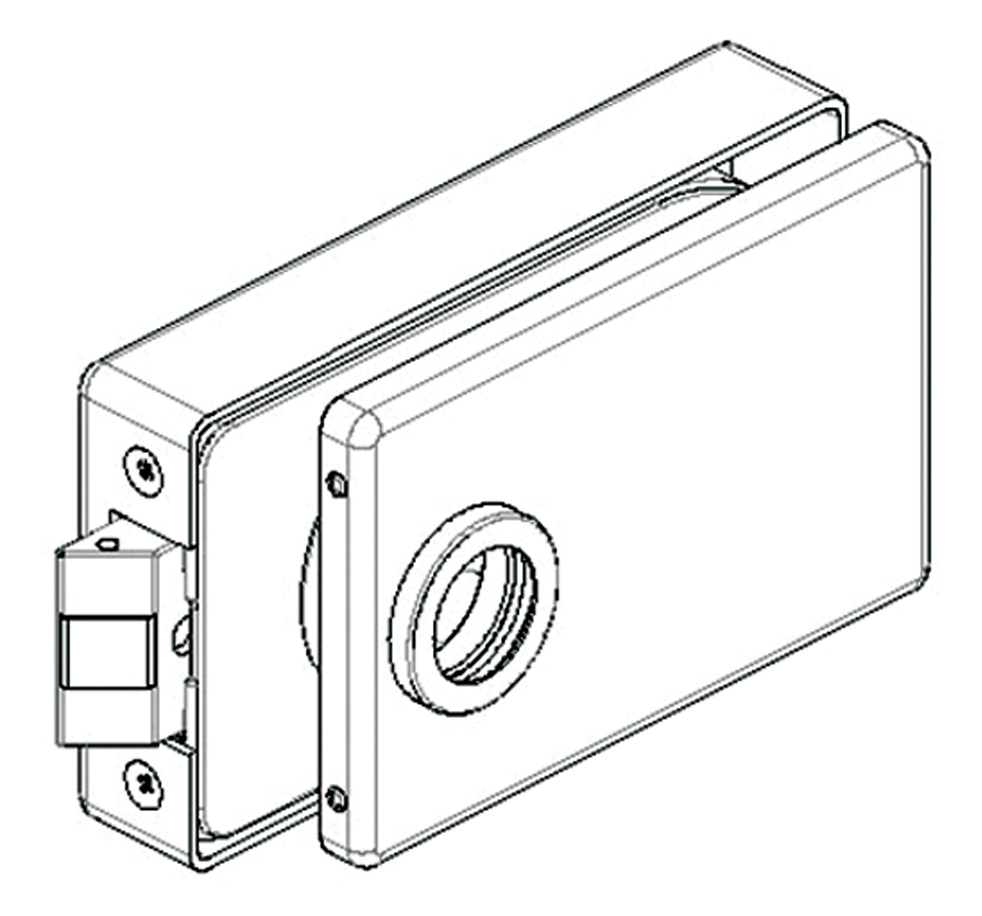

145-681WSC
Horizontal lock with hole for handle and hole for cylinder.
8 – 12 mm

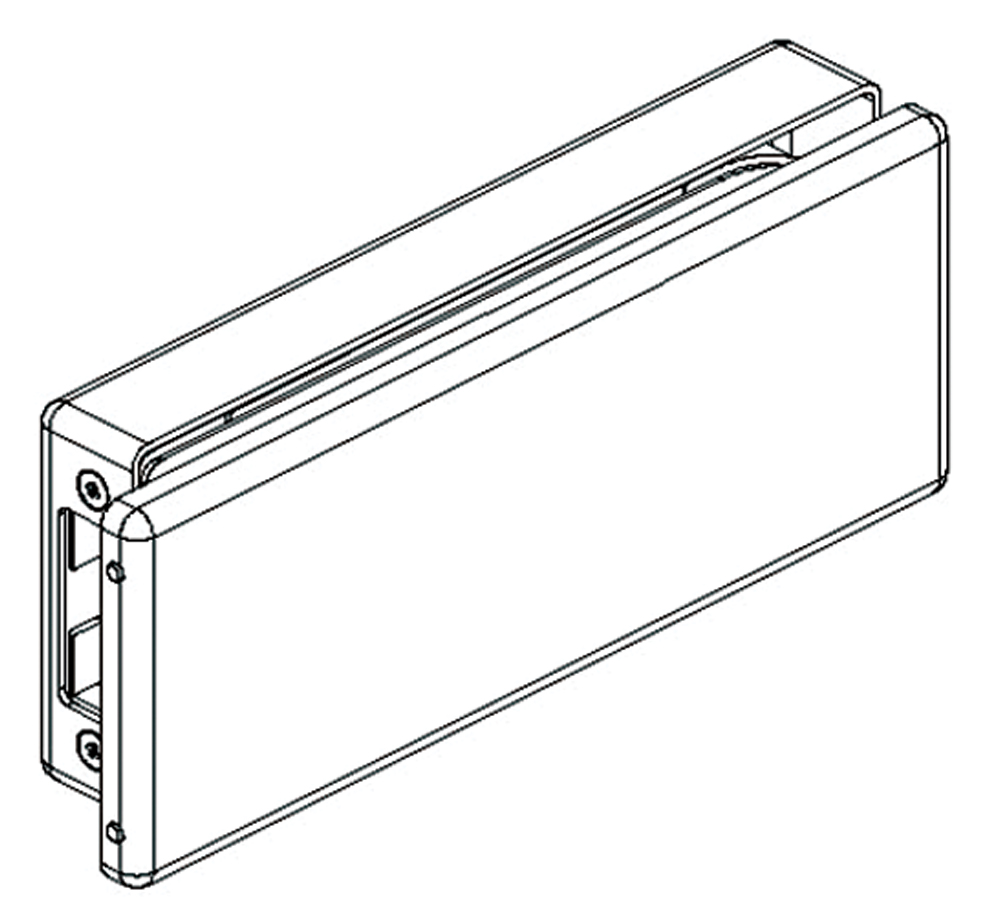

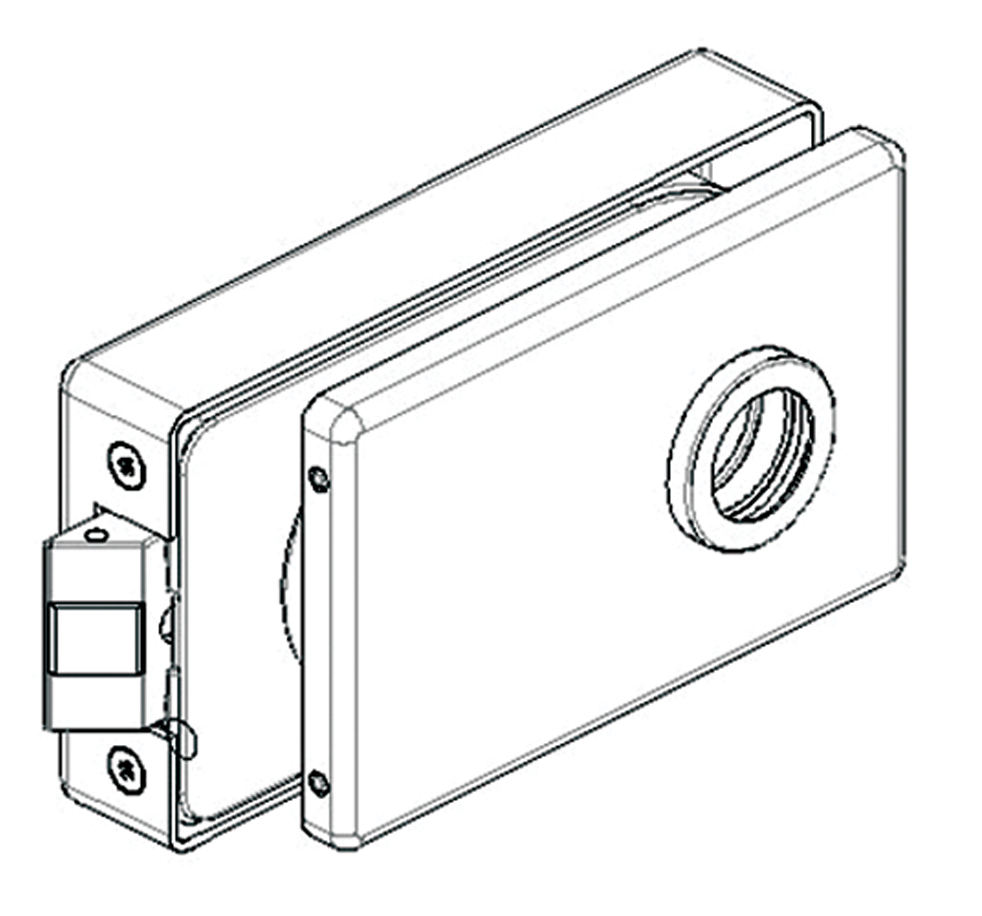

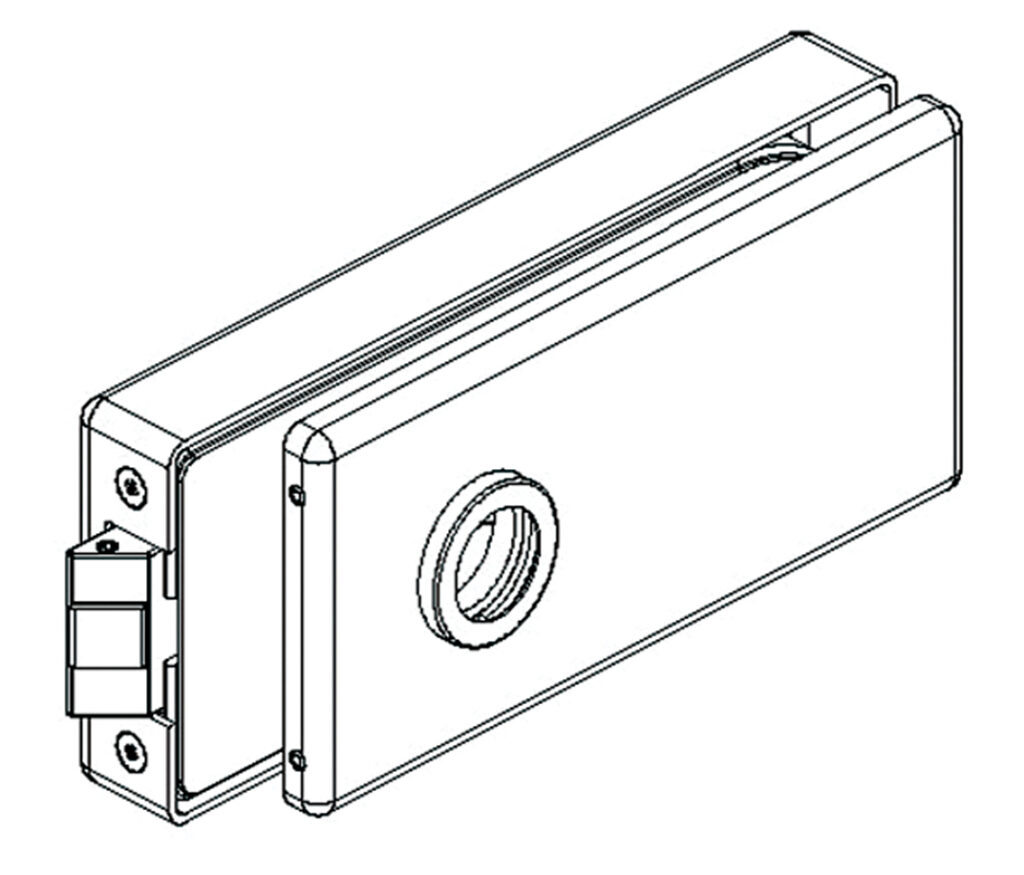

145-681W01
Horizontal lock with hole for handle. For doors with stop.
8 – 12 mm
145-681W02
Horizontal lock with hole for handle. For doors with stop.
8 – 12 mm

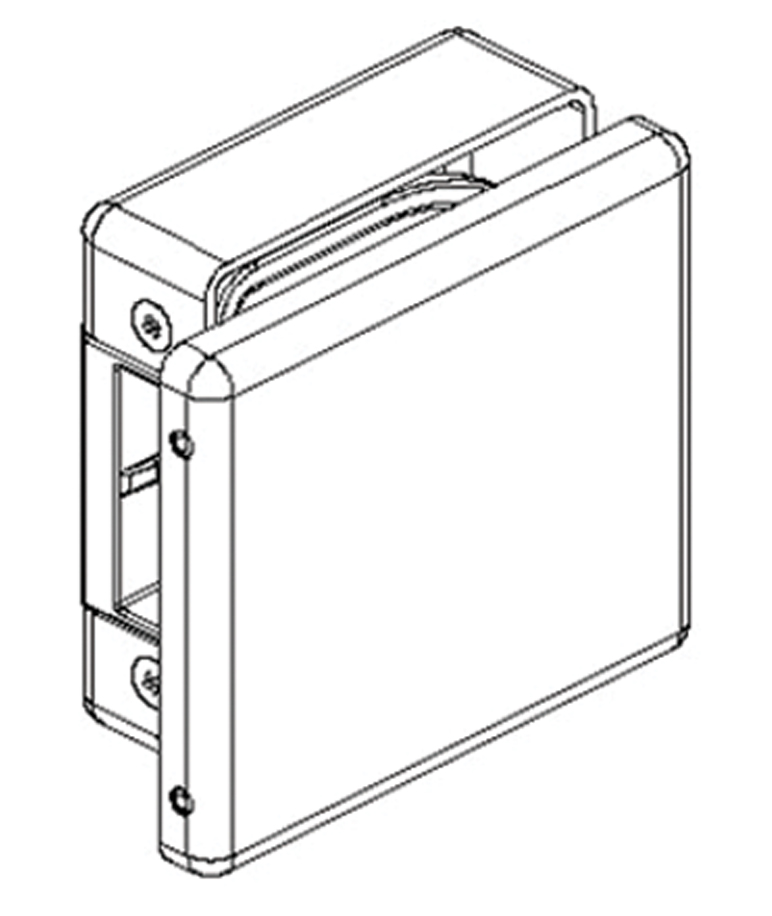

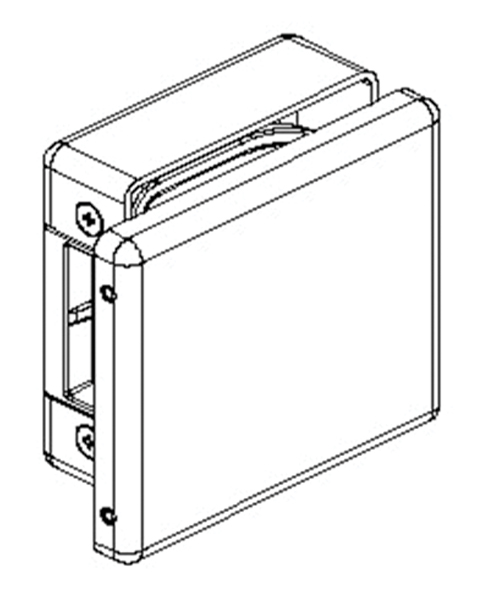

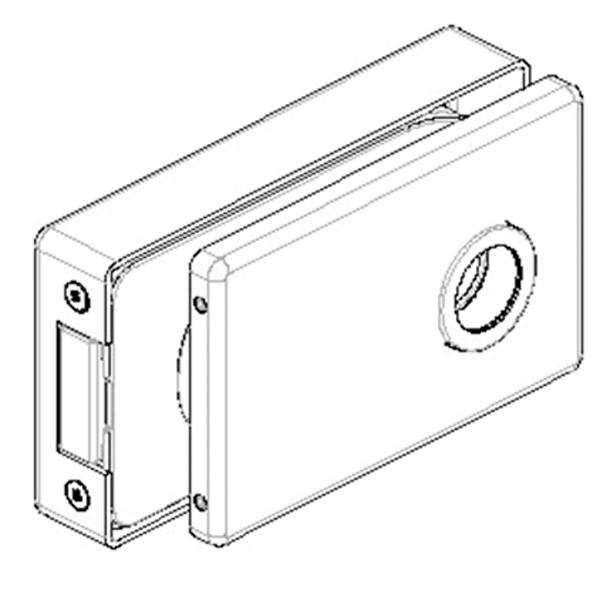

145-681W50
Horizontal
strike box
with stop
8 – 12 mm

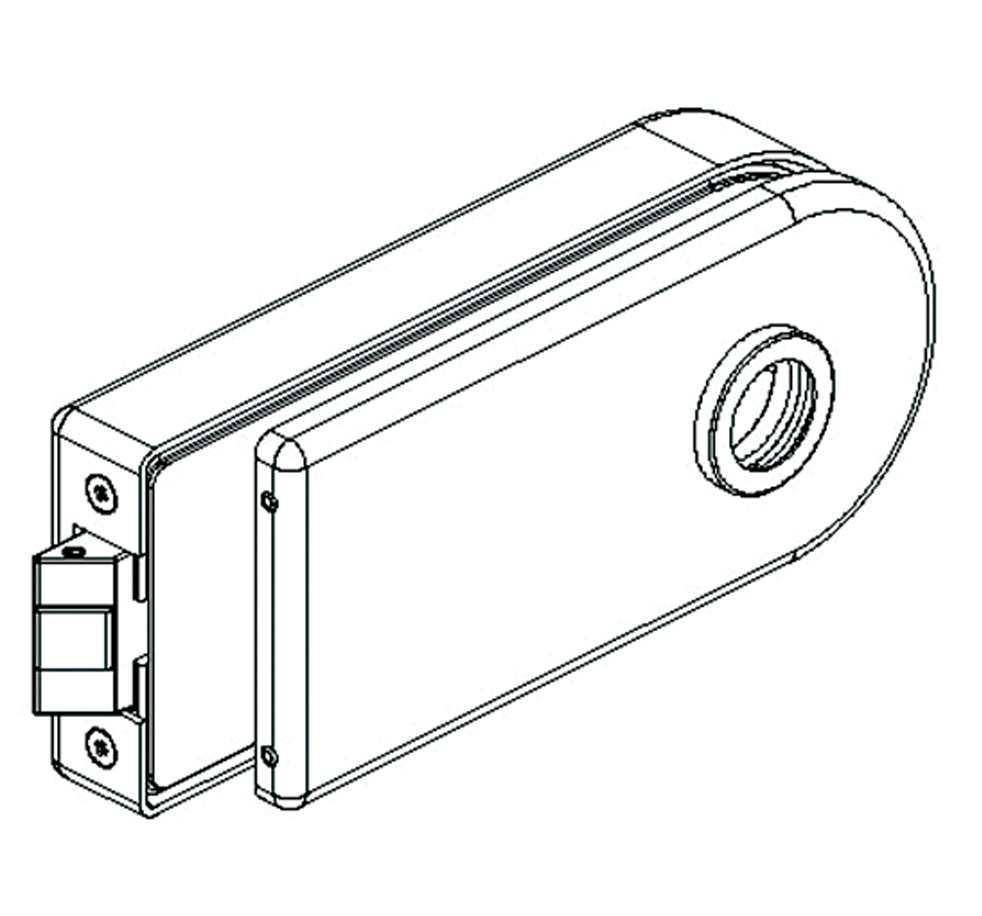

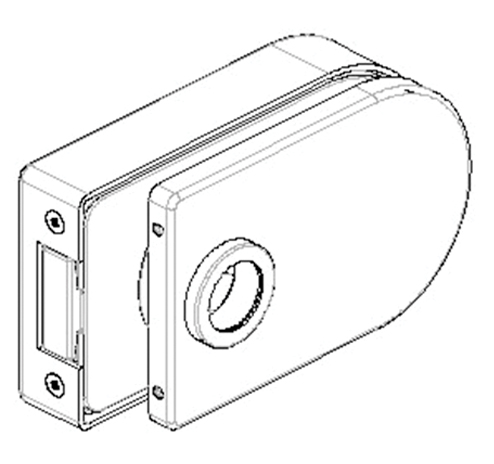

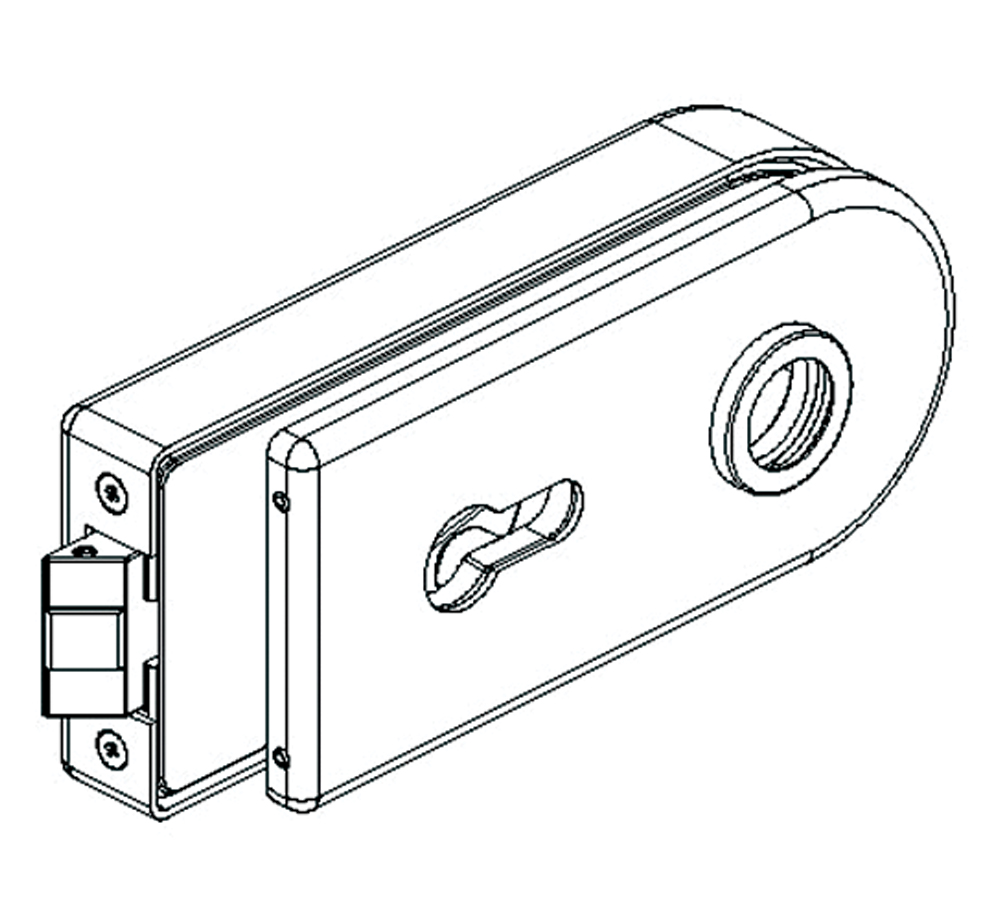

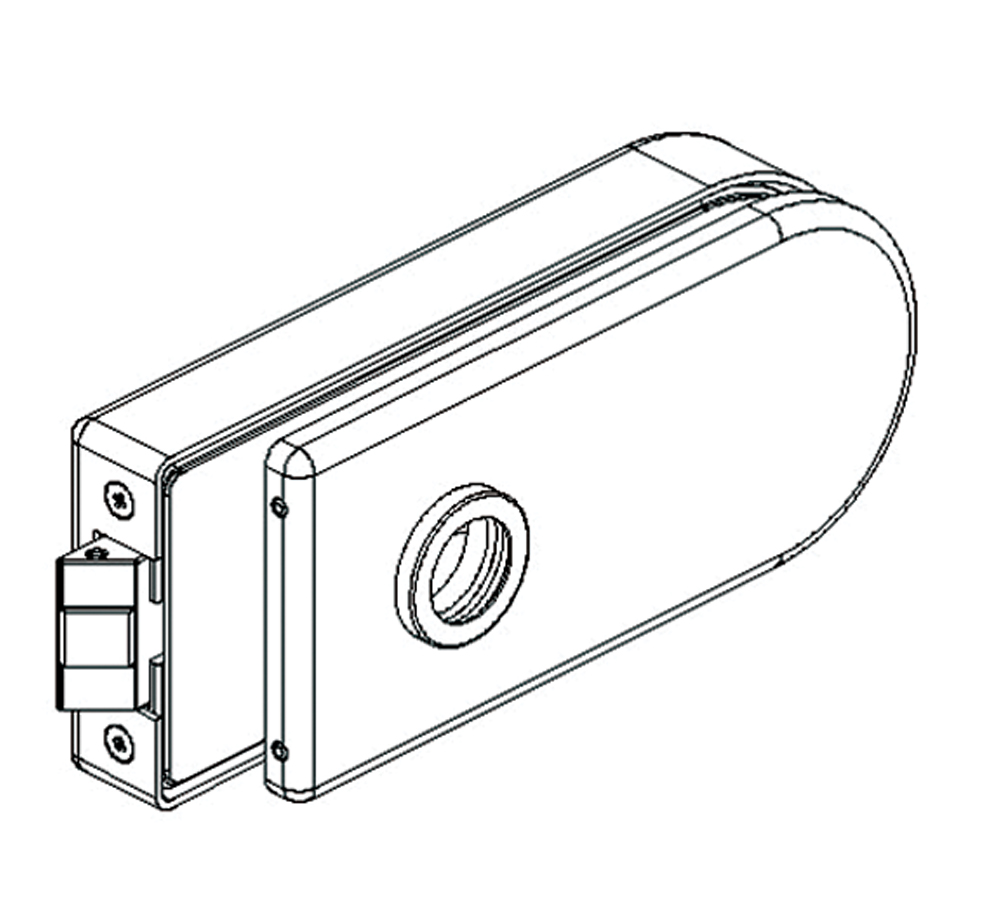

145-682WSC
Horizontal rounded lock with hole for the handle. For doors with stop.
8 – 12 mm

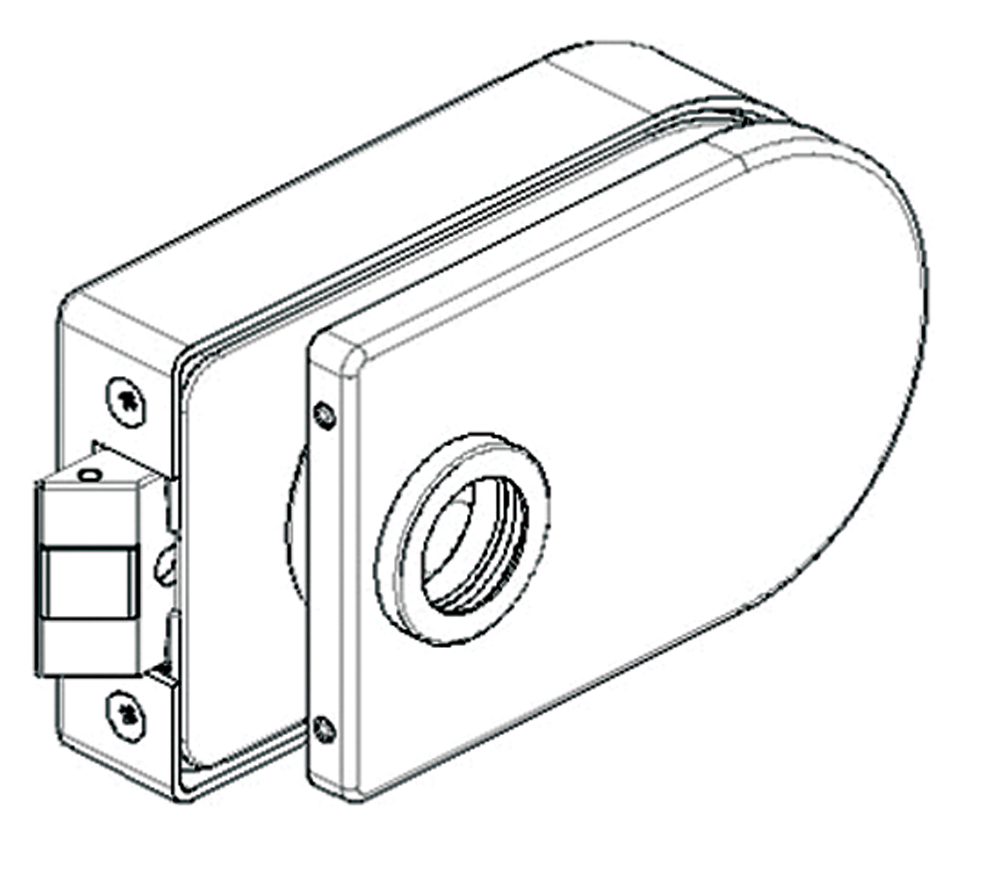

145-682W01
Horizontal lock with hole for handle and hole for cylinder.
8 – 12 mm
145-682W02
Horizontal rounded lock with hole for handle. For doors with stop.
8 – 12 mm

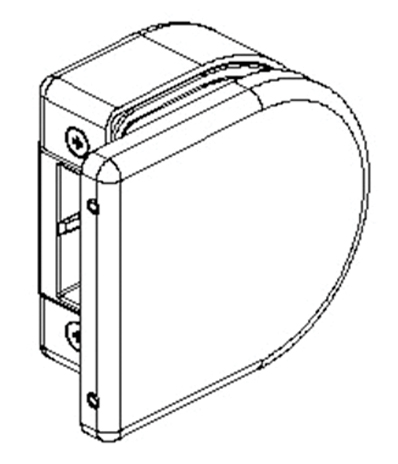

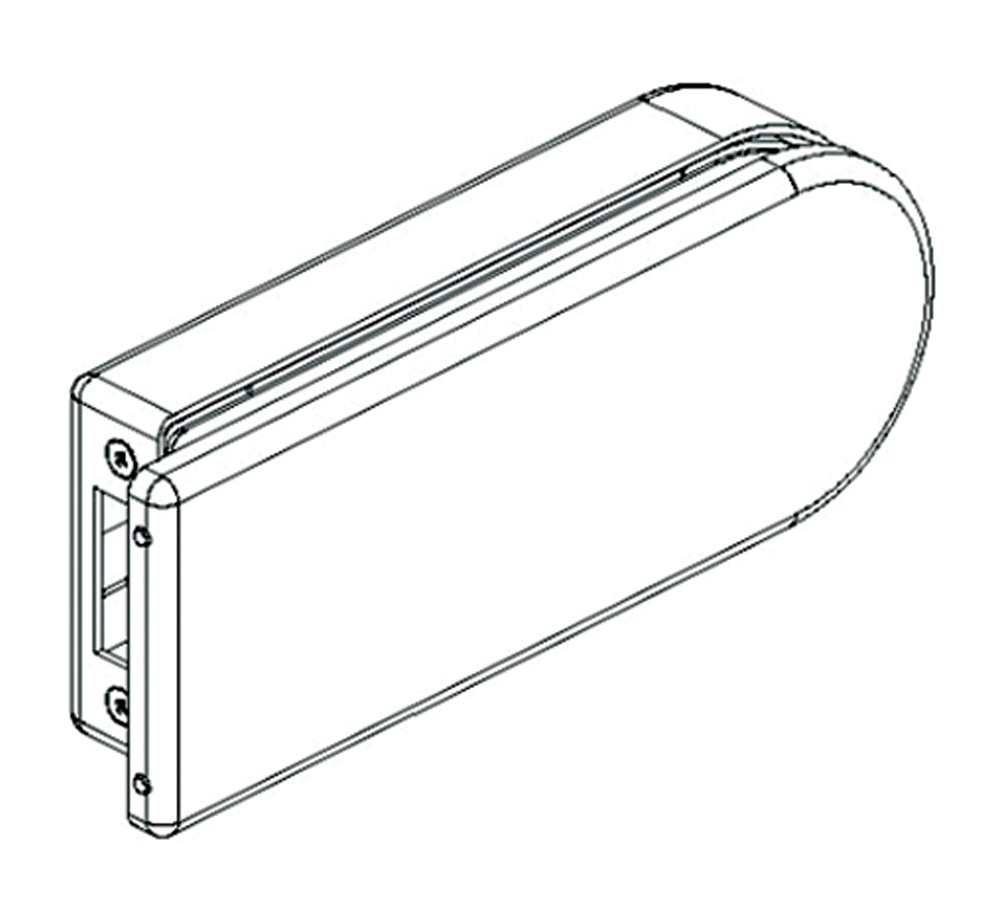

145-682W50
Horizontal rounded strike box
with stop.
8 – 12 mm

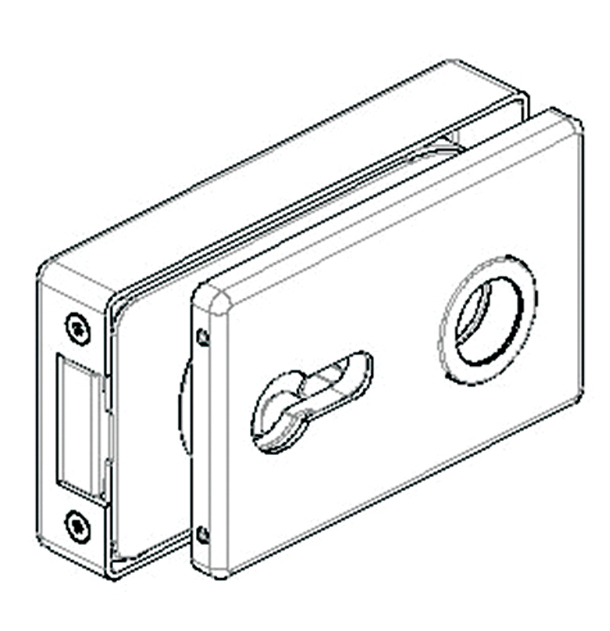

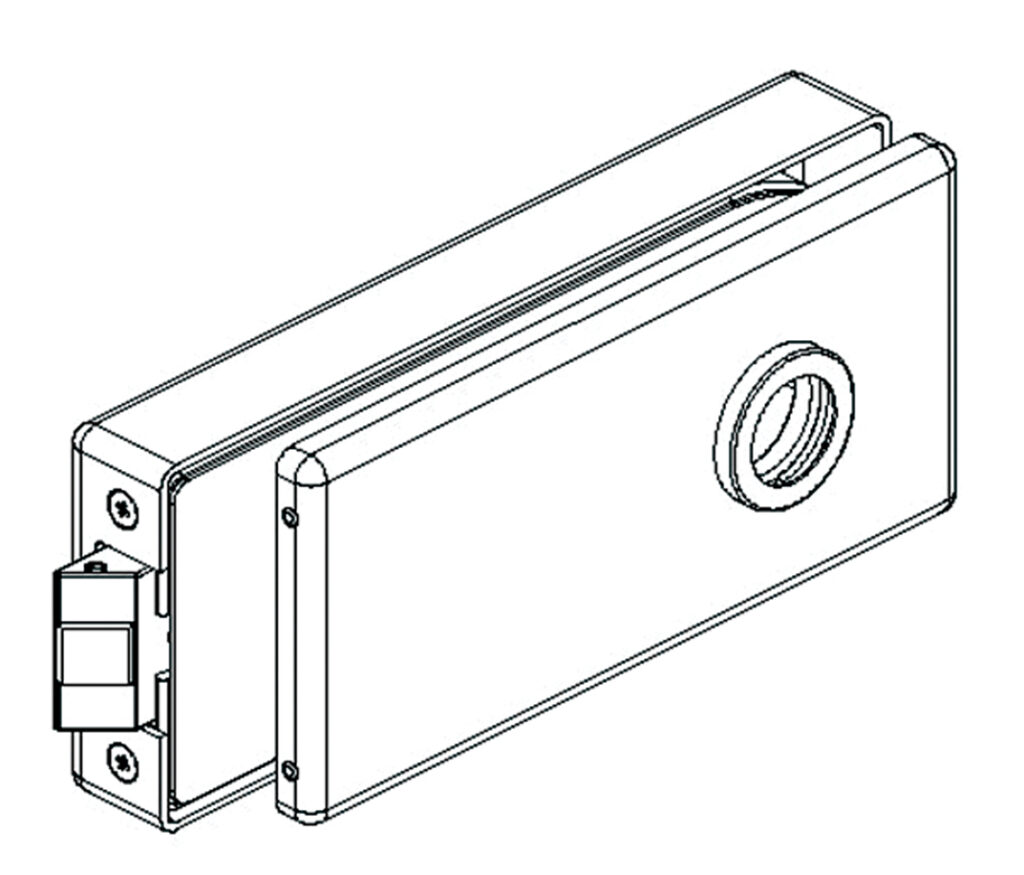

145-683WSC
Horizontal lock with hole for handle and hole for cylinder. Doors stop.
8 – 12 mm
145-683W01
Horizontal lock with hole for handle. For doors with stop.
8 – 12 mm
145-683W02
Horizontal lock with hole for handle. For doors with stop.
8 – 12 mm
145-683W50
Horiz.strike box w/ stop.
8 – 12 mm

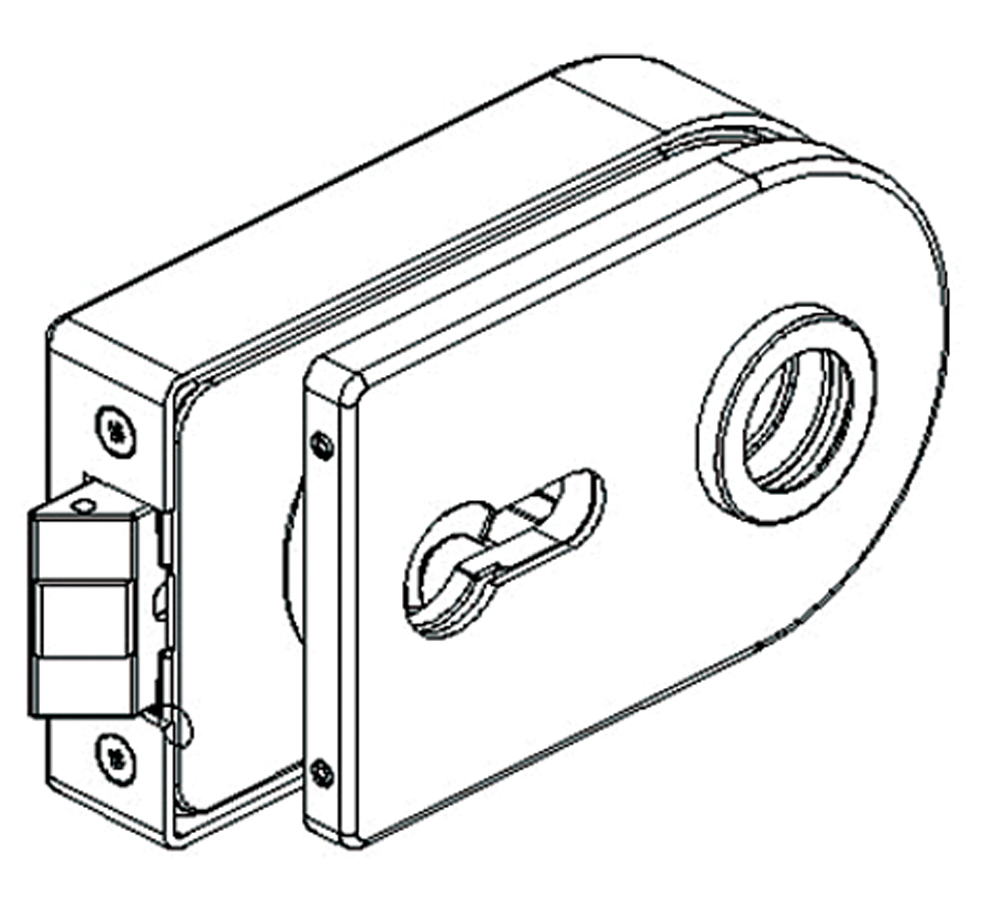

145-684WSC
Horizontal rounded lock with hole for the handle and for the cylinder. For doors with stop.
8 – 12 mm

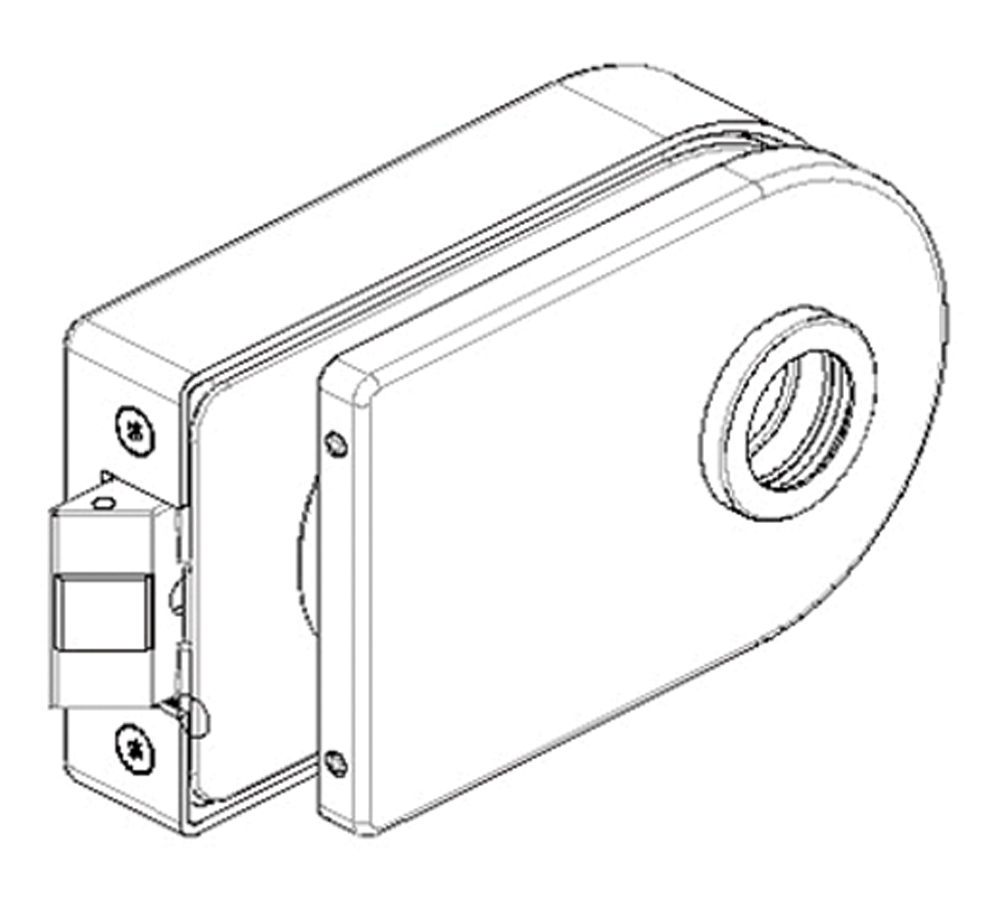

145-684W01
Horizontal rounded lock with hole for handle.
For doors
with stop
8 – 12 mm
145-684W02
Horizontal rounded lock with hole for handle. Foor doors
with stop.
8 – 12 mm
145-684W50
Horizontal
rounded
strike box
with stop.
8 – 12 mm
145-685W30
Lock for bathrooms with free/ occupied pull. Quick and easy knob/ coin inversion.
8 – 10 mm
LOQ Magnetic Lock
LOQ Magnetic Locks

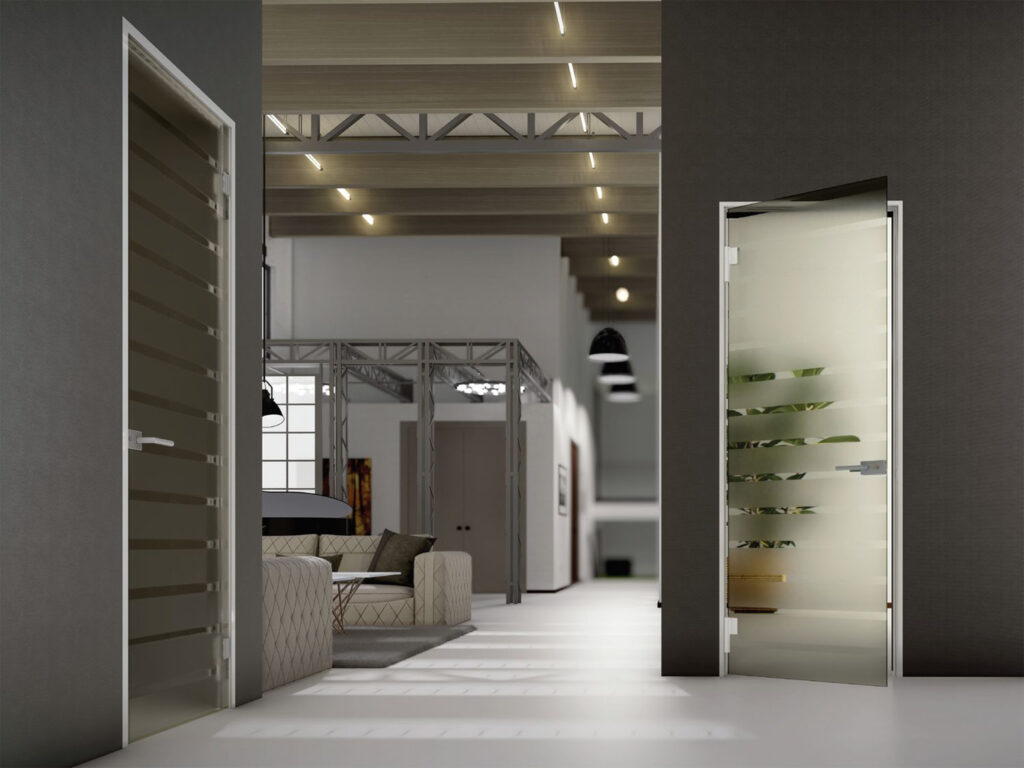

LOQ MAGNETIC is the new lock series for glass doors, expanding and completing our already available LOQ ange. Slim shapes and simple lines enhance the clear and essential design of glass doors. The mechanism with magnetic latch guarantees maximum safeness and avoids unpleasant scratches on the walls. Noiselessness and closing precision are the main features; the locks can be installed in offices and residential spaces.
LOQ MAGNETIC series is available in satin and polished stainless steel, as well as in Colcom standard finishes. Handles and cylinders are to be ordered separately in three different models, depending on installation needs.
- Magnetic latch mechanism. The lock just makes a “click” and more you can close the door without needing to operate the handle
- The latch is triggered when facing the magnetic strike plate. The door frame is not rubbed by the latch , which enters directly into the strike plate.
- The latch is INVISIBLEwhen the door is open because it remains inside the lock
- Big tolerance when positioning the lock thanks to powerful magnets
- Universal latch, so you don’t need to turn it around depending on the configuration of the door
145-683WSCM
Horizontal lock “LOQ” with hole for handle and hole for cylinder. For doors with stop. Magnetic latch.
8 – 12 mm
145-683W01M
Horizontal lock “LOQ” with hole for handle. For doors with stop. Magnetic latch.
8 – 12 mm
145-683W02M
Horizontal lock “LOQ” with hole for handle. For doors with stop. Magnetic latch.
8 – 12 mm
145-683W50M
Magnetic lock keeper for jamb doors “LOQ”
8 – 12 mm
145-684WSCM
Horizontal rounded lock “LOQ” with hole for handle and for cylinder. For doors with stop
8 – 10 mm
145-684W01M
Horizontal rounded lock “LOQ” with hole for handle. For doors with stop. Magnetic latch..
8 – 12 mm
145-684W02M
Horizontal rounded lock “LOQ” with hole for the handle. For doors with stop. Magnetic latch.
8 – 12 mm
145-684W50M
Magnetic Horizontal rounded strike box “LOQ” with stop.
8 – 12 mm

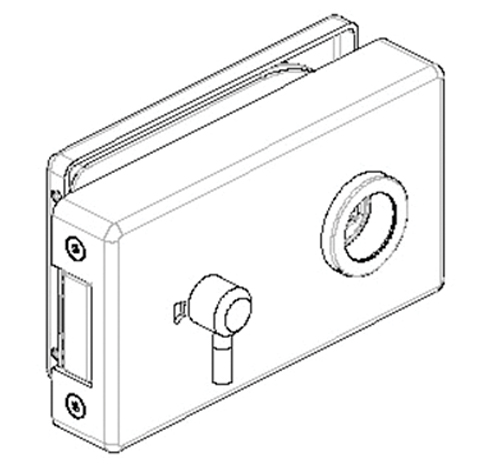

145-685W30M
Lock for bathrooms with free/occupied pull. Quick and easy knob/coin inversion. Magnetic latch.
8 – 12 mm
145-686W30M
Rounded Lock for bathrooms with free/ occupied pull. Quick and easy knob/coin inversion. Magnetic latch.
8 – 12 mm
145-683W11MGR
Magnetic plate for LOQ.
8 – 10 mm

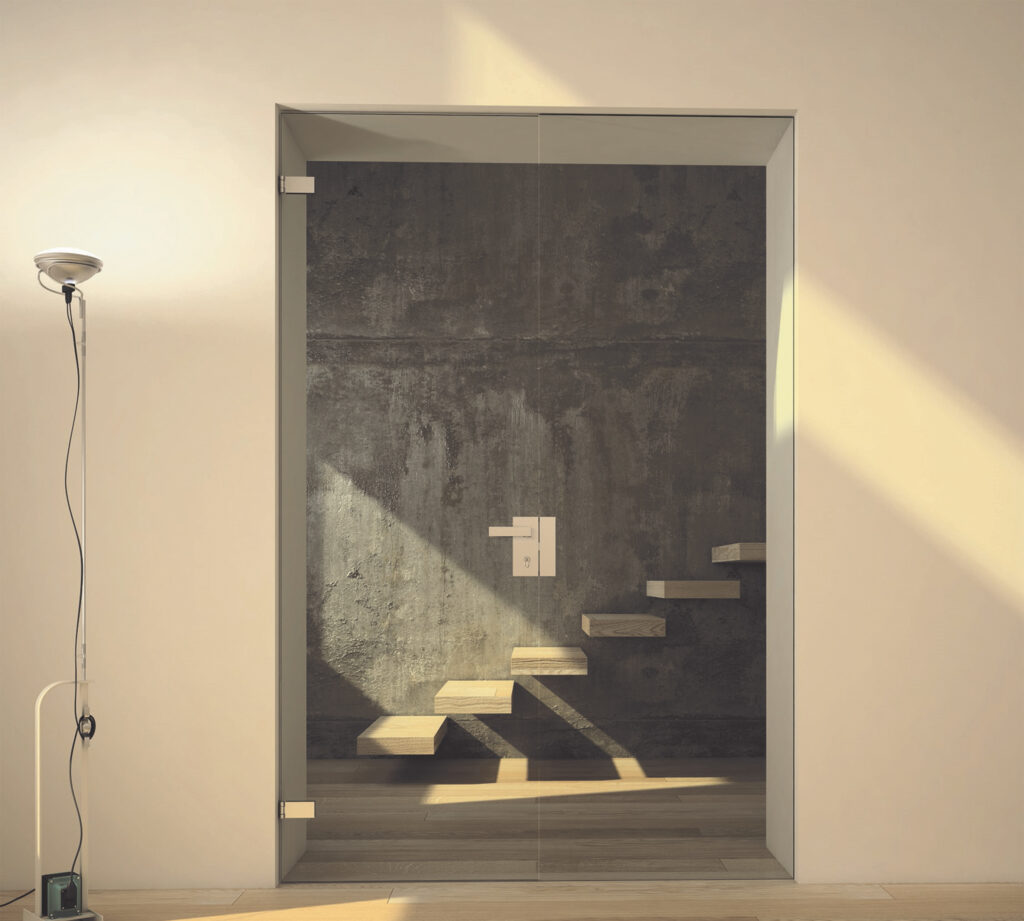

Vertical Locks
Vertical Lock Series
Self-positioning latch which offers a firm closure without shaking. A feature of this latch is that when locked, the handle remains free thus avoiding damage due to accidental forcing.
It accepts European cylinders to meet EU standards.
Design of pure and rigorous form and aesthetic minimalism.
Magnetic latch mechanism.
- Closing precision.
- Satin or polished Stainless steel.

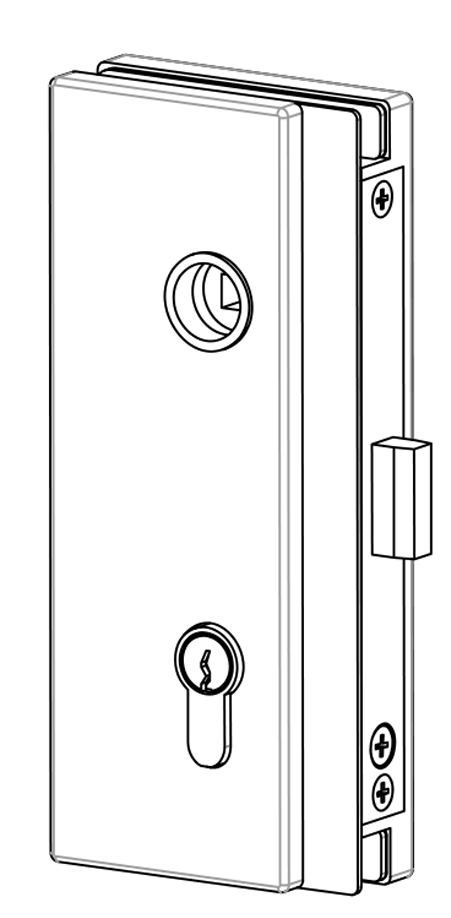

145-620E10

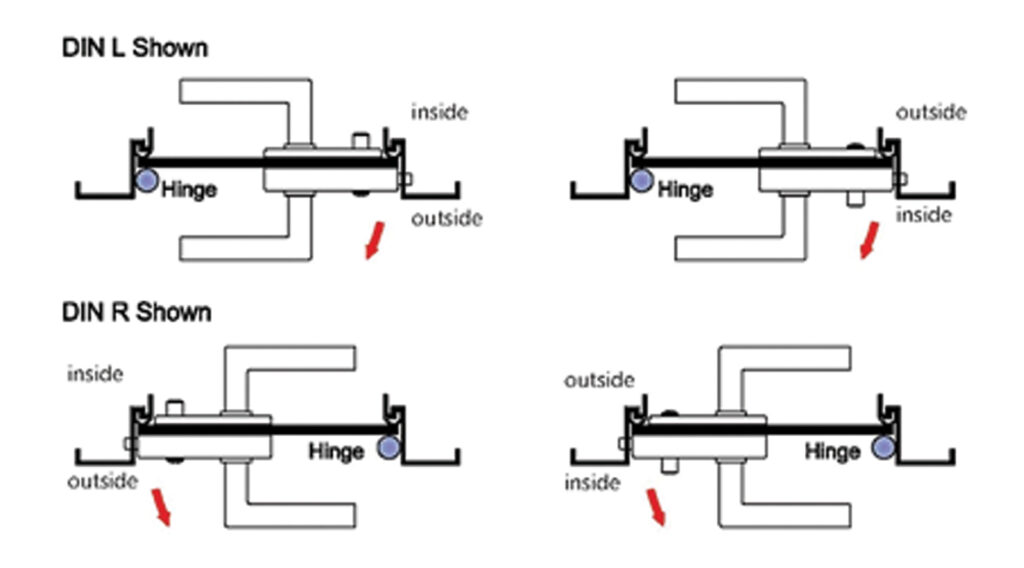

620E10 R = right 620E10 L = left
Self-positioning latch with block function that leaves the handle free.
8 – 12 mm
145-620E50
620E50 R = right 620E50 L = left
Vertical strike box with stop.
8 – 12 mm

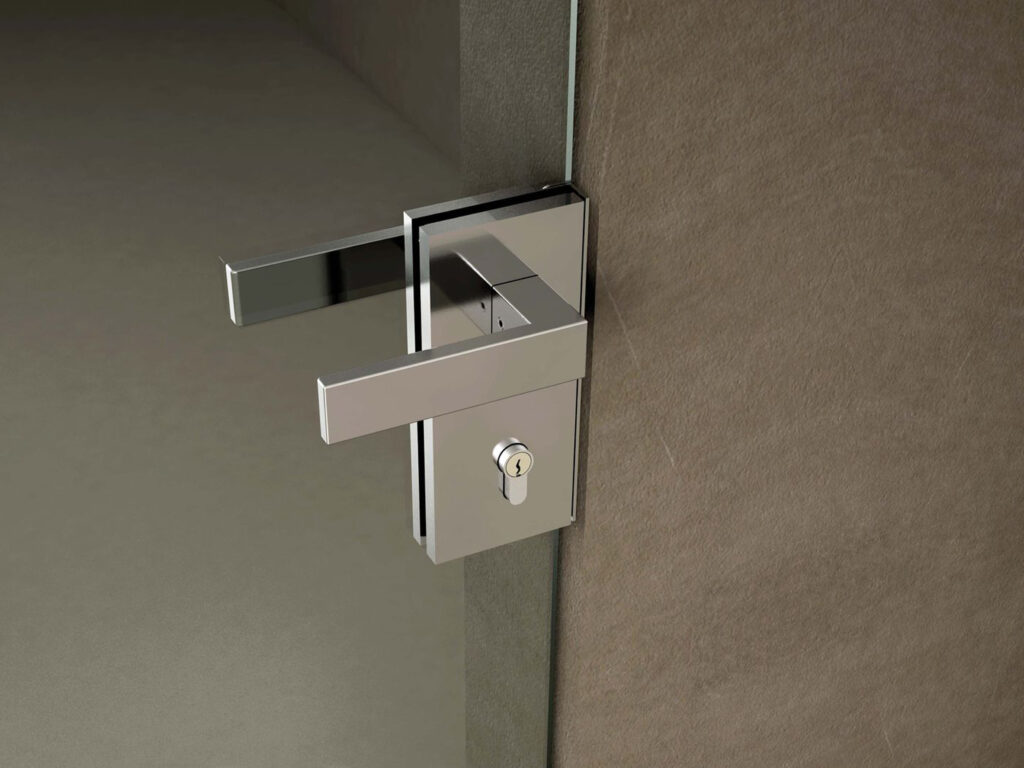

Magnetic Vertical Locks
Magnetic Vertical Lock Series

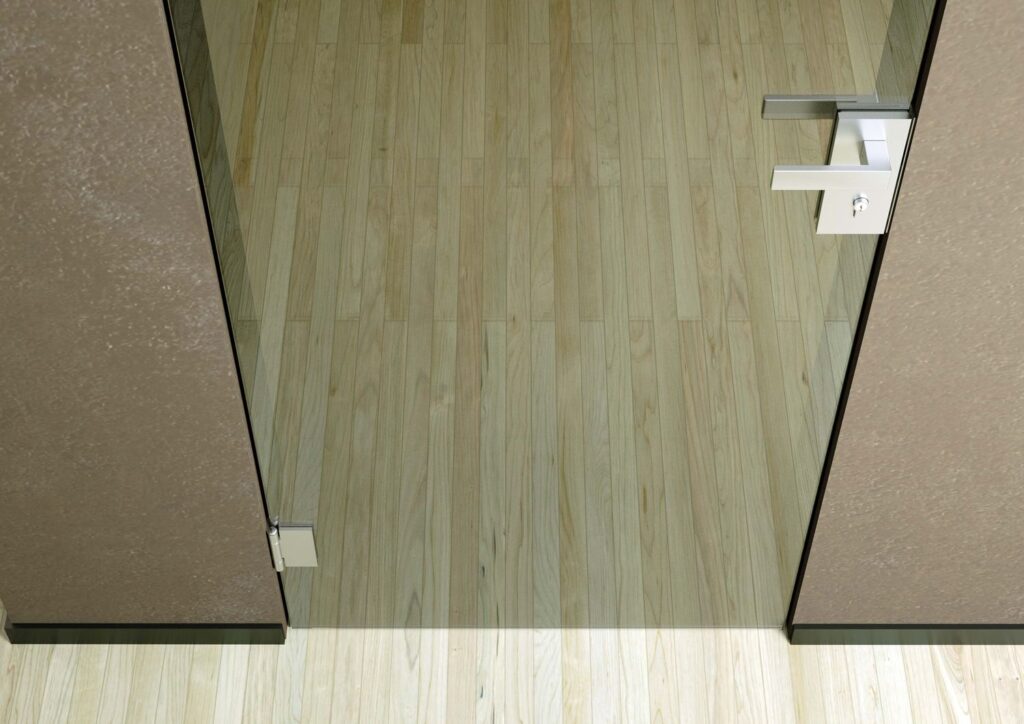

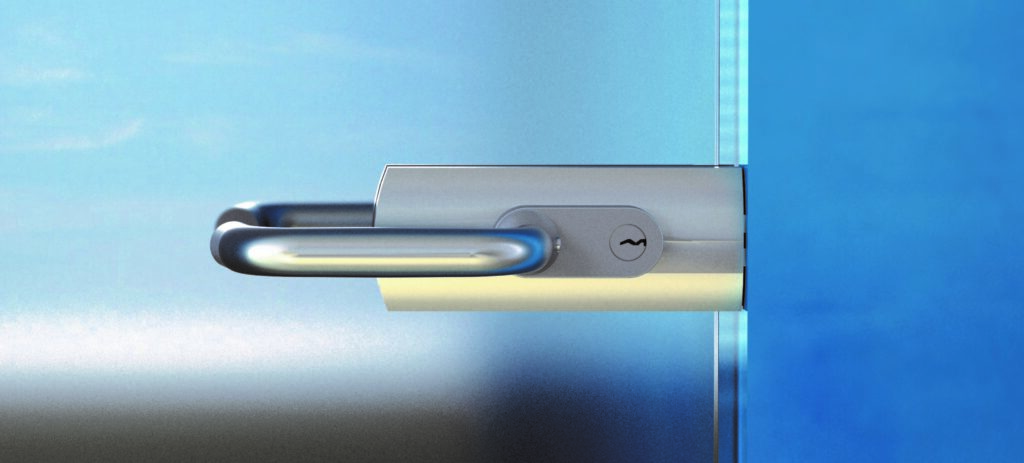

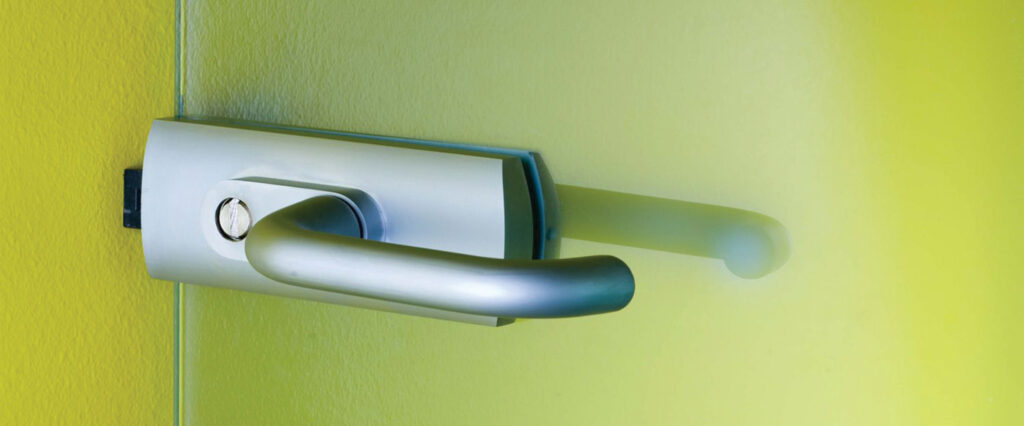

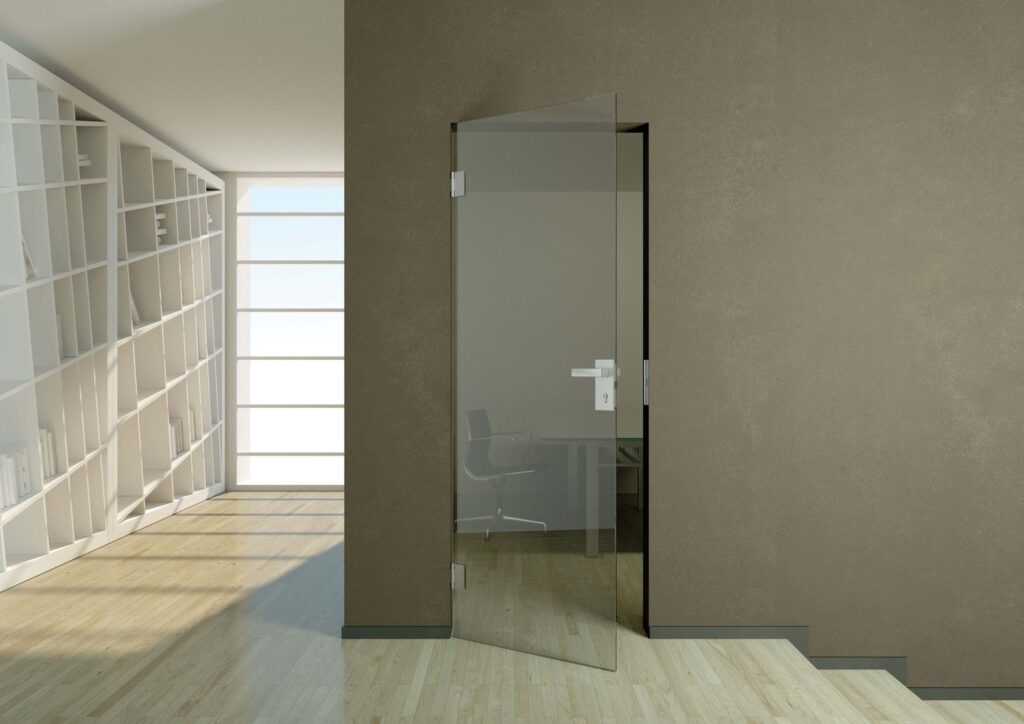

The Magnetic Lock is elegant and silent

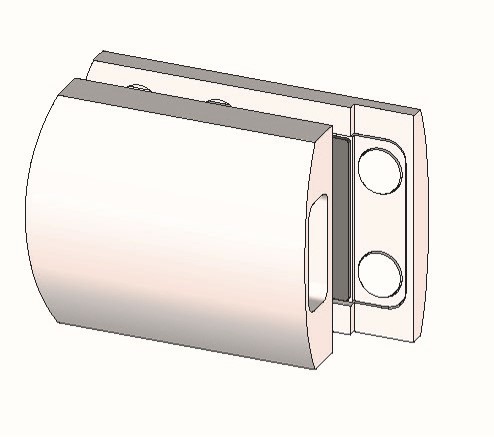

The vertical magnetic lock for internal glass doors is available for both hinged doors and back and forth doors.
Extremely silent and versatile, it can be installed in offices or homes.
When the door is open, the latch of the magnetic lock remains flush.
Special magnets make it return to the front only with the door closed.
This feature makes closing safe and pleasant as the latch does not hit the door frame, guaranteeing extreme silence.
Made of aluminum in the usual Colcom finishes. Glass thickness 10-12 mm.

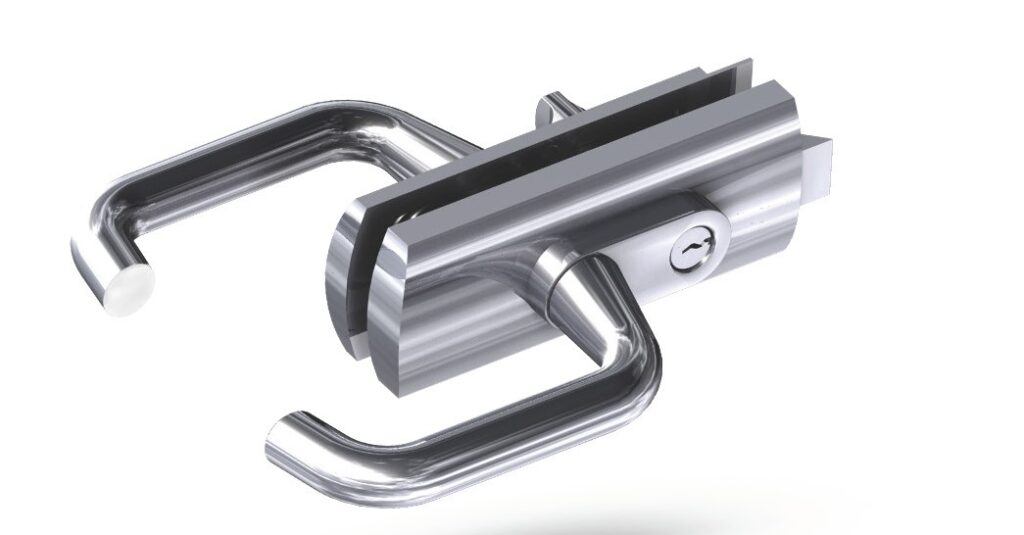

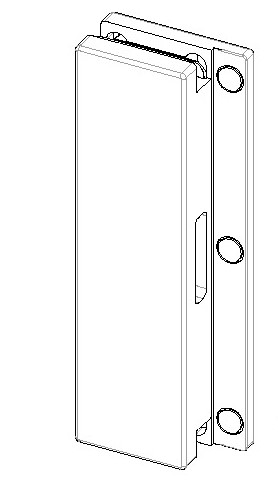

145-622E10
145-622E10 R = right
145-622E10 L = left
Vertical lock key-key with a magnetic latch for jamb doors.
Matchable with 145-622E50
145-0622E10
145-0622E11
145-0622E12
10 – 12 mm
145-623E10
145-623E10 R = right
145-623E10 L = left
Vertical strike box with stop.
Matchable with 145-623E50
145-0622E11
145-0622E12
10 – 12 mm
1145-622E50

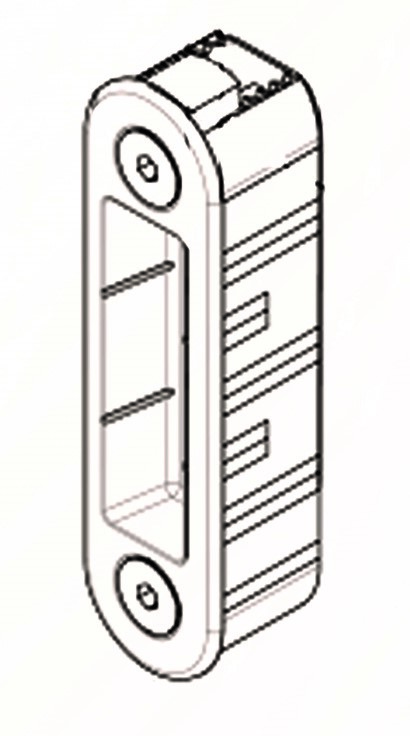

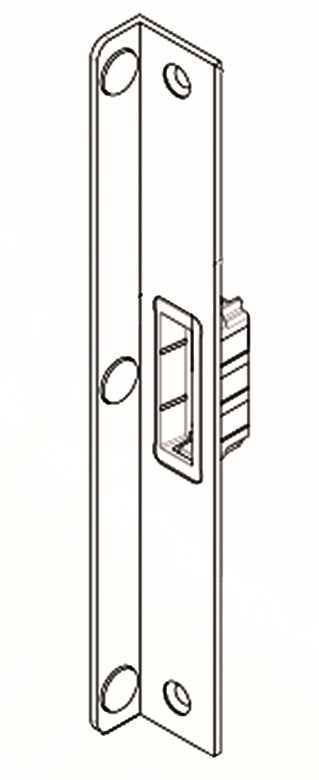

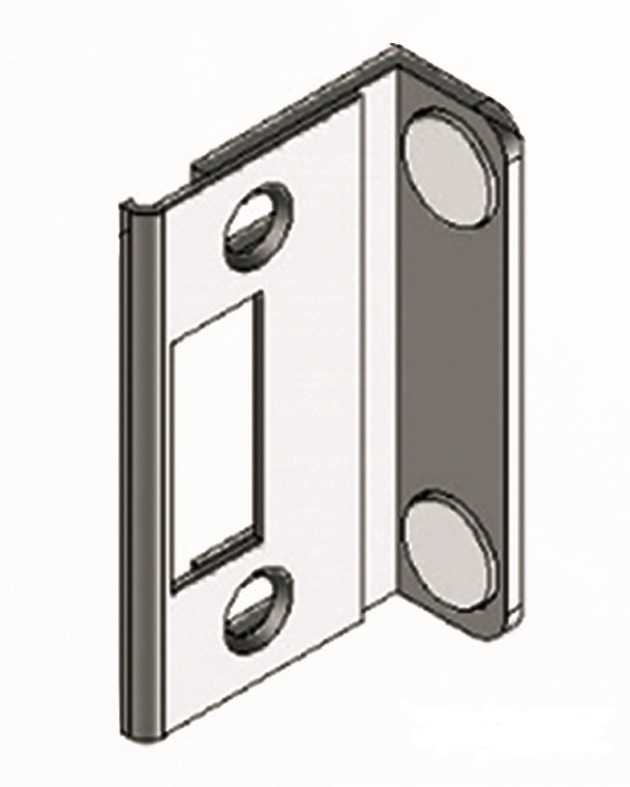

Magneti c vertical lock keeper for jamb doors.
10 – 12 mm
145-623E50
Magneti c vertical lock keeper for double swing doors.
10 – 12 mm
145-0622E10
Magnetic latch keeper with jamb for art. 145-622E10.
145-0622E11
Wall magnetic latch keeper for art 145-622E10 and 145-623E10.
145-0622E12

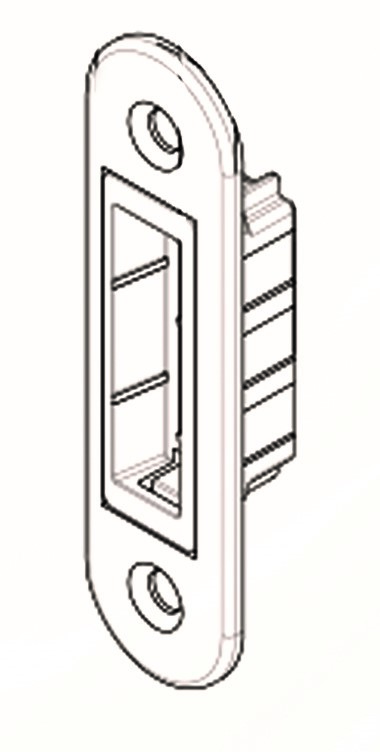

Magnetic latch keeper for aluminum frames for art. 145-622E10 and 145-623E10.
Flexa Locks
Flexa Minimalistic Locks

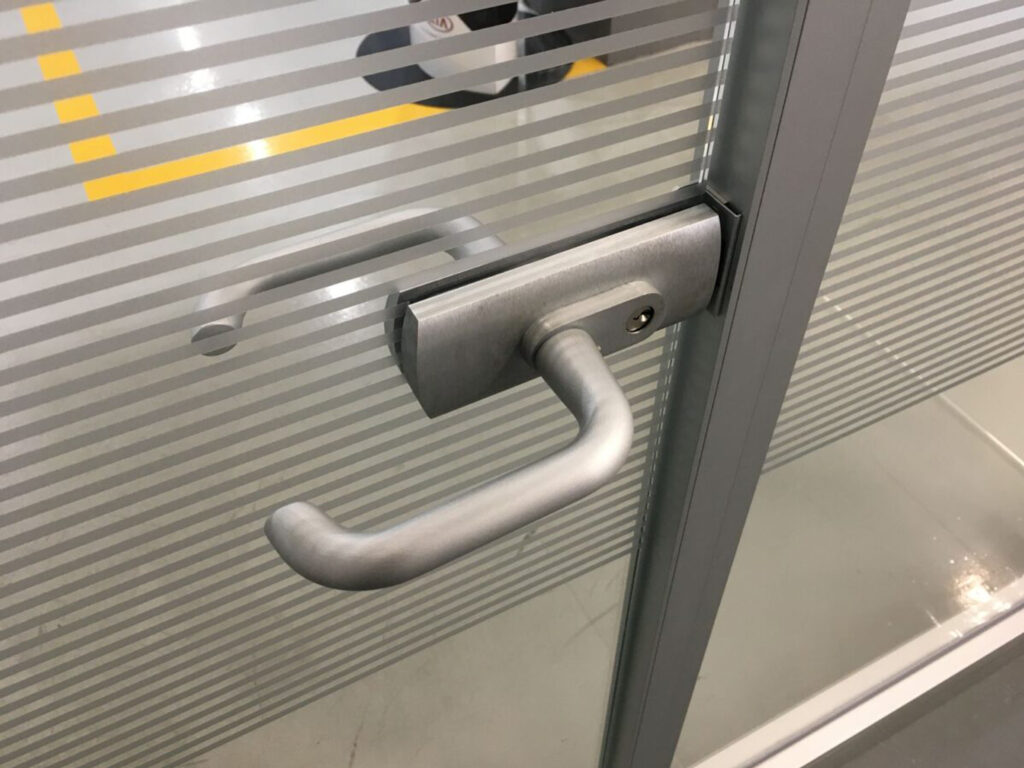

Colcom presents a new concept of lock designed starting from the most demanding requests of the market.
We wished to realize a lock of reduced dimensions, with an aesthetic and above all functional minimalism, and “FLEXA” is the answer to this challenge.
The true innovation lies on the inner, “patented” mechanism, which allows “FLEXA” to be ambidextrous, silent and strong.

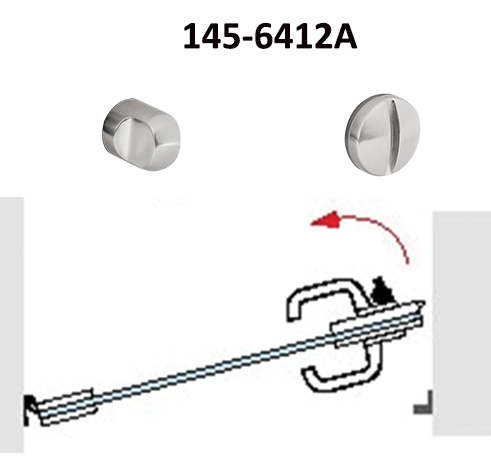

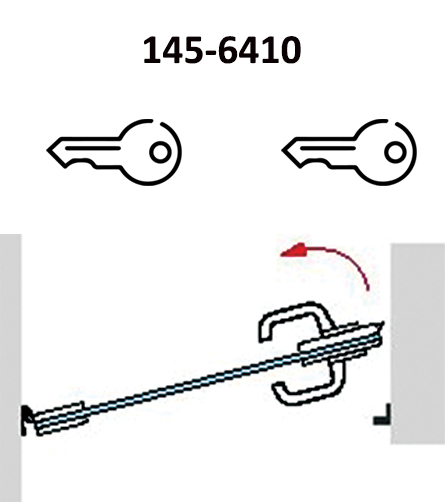

Three are the versions: key-key, key-knob and knob-free/engaged.
Colcom also proposes coordinate hinge and lock keeper.
Lock, lock keeper and hinge are available for glass thickness 8 – 10 – 12 mm.
146-6415
Horizontal strike box “FLEXA”
146-0641
Latch keep with stop

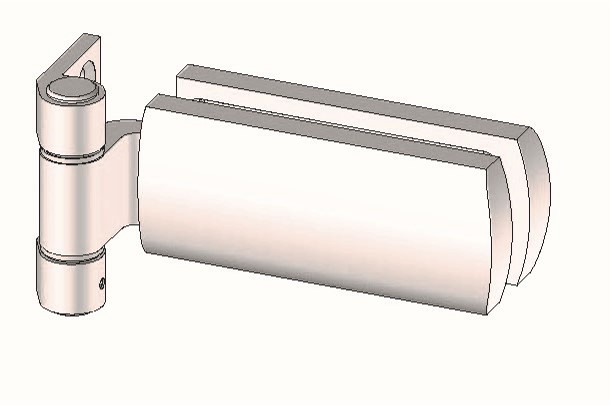

Flexa Hinges. See Hinges Catalogue

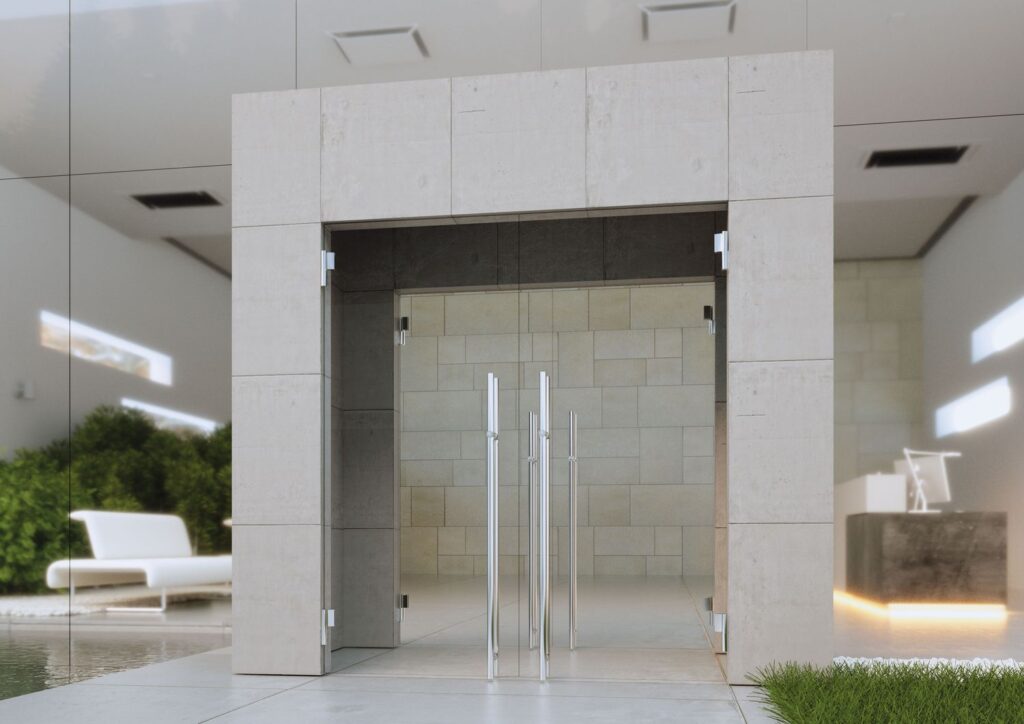

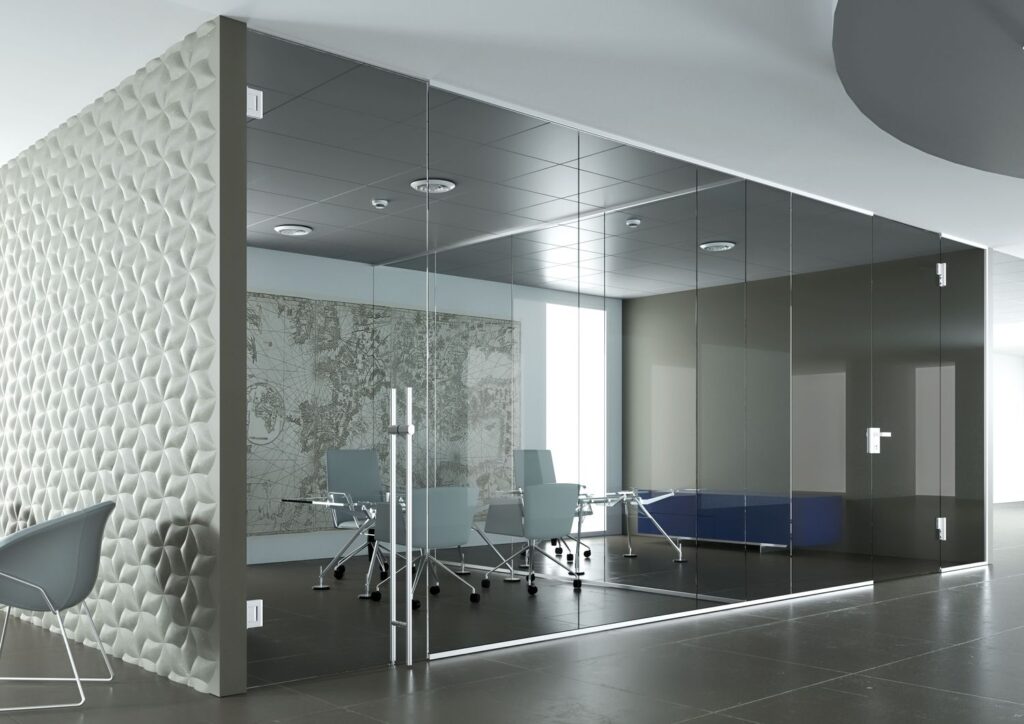

Pulling Handles
Pulling Handles With Lock

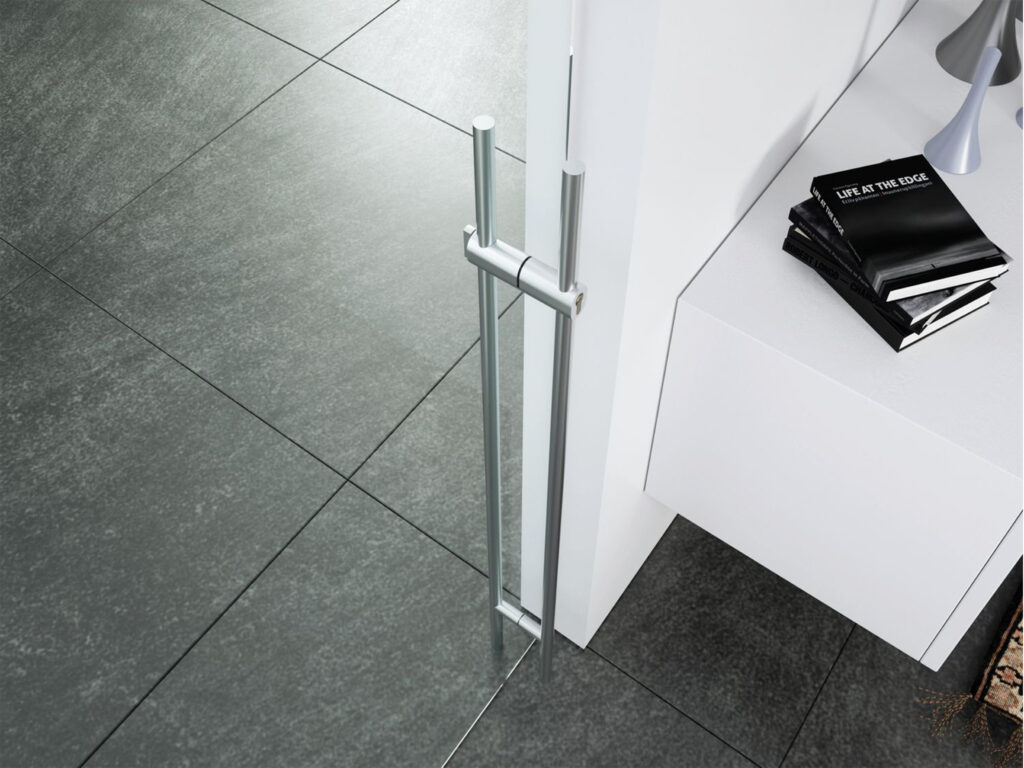

Colcom Group S.p.A. integrates its range of pulling handles with lock with a new handle “Made in Italy” that combines a durable quality over time and a sleek design.
It is suitable to be used in environments like corporate offices, boutique shops, private homes but also in buildings with a daily high-flow of people such as malls, airports, and train & bus terminals.
As usual, it’s made with high quality and beautiful finishes, all combined with a competitive price.
art. 145-505W50
Rounded tube-shaped Ø 25 mm.
Interaxle spacing 900 mm in stainless steel AISI 316.
Built-in lock.
Patented fixing system.
Available finishes: polished or satin.
Glass thickness: 8-20 mm.
Available versions: key & knob.
145-500W5132
1500 mm length
35mm diam.
Mirror polished
145-500W5131
1500 mm length
35mm diam.
Satin polished
10 – 13.52 mm
145-500W5032
1500 mm length
35mm diam.
Mirror polished
145-500W5031
1500 mm length
35mm diam.
Mirror polished
10 – 13.52 mm
145-501W5032
2200 mm length
35mm diam.
Mirror polished
145-501W5031
2200 mm length
35mm diam.
Satin polished
10 – 13.52 mm
Tubular rounded (Ø 35mm – Thickness 1mm) handles in stainless steel with lock included. Realized in following finishing: polish and satin, available in two lengths.
One version made of 1500mm in different models: key-key or key-knob and the other one made of 2200mm in key-knob version.
Three solutions which allow to close with style and safety the glazed doors with thickness from 10 to 13,52 mm

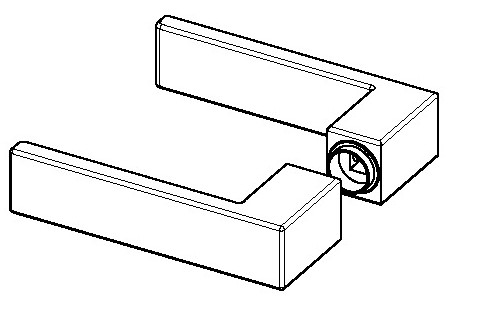

Handles
Ergonomic Handles

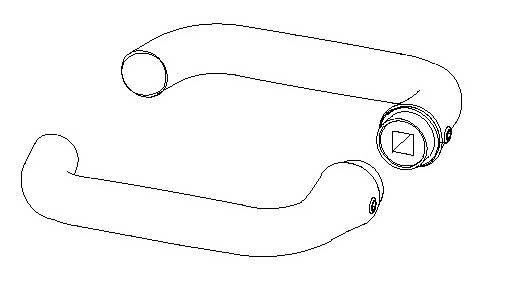

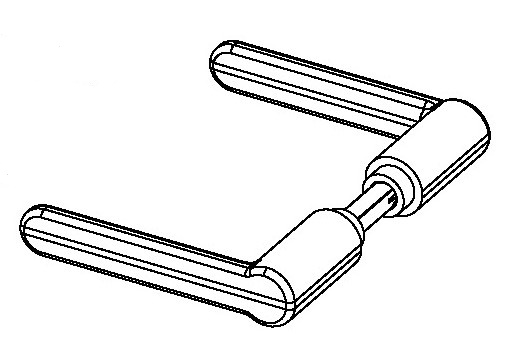

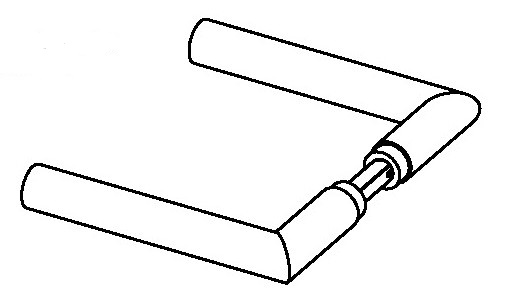

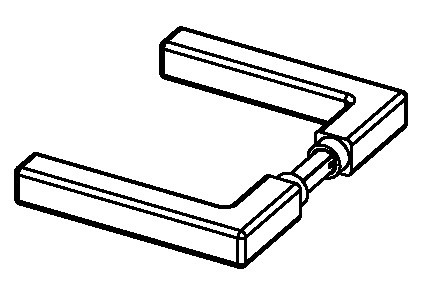

145-6606
Standard lever handle.

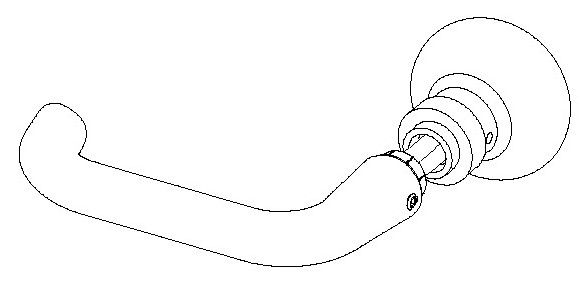

145-601E10
Aluminum ergonomic lever handle.

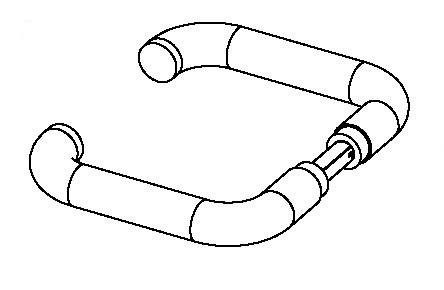

145-609W
Rounded handle with rounded corner. Internal mechanism included.
145-6610
Standard lever handle.
145-607W
Lever handle with dead knob.
145-610W
Flat handgrip handle. Internal mechanism included.
145-600E10
Lever handle with dead knob.

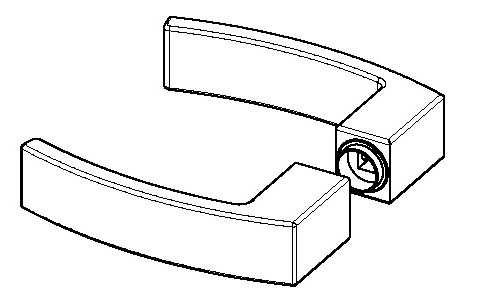

145-608W
Rounded handle in a square shape. Internal mechanism included.
