Systems B2B Albio 101

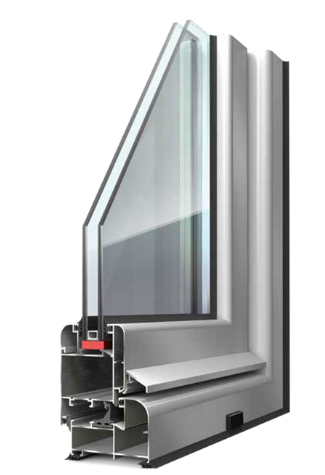

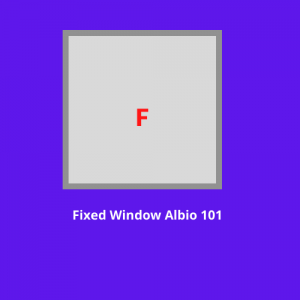

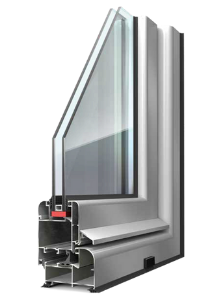

The Exalco Albio 101 series offers the widest variety of construction types that make the system suitable for a wide range of applications. It includes two different models (oval and flat) that give you a variety of options. It offers a 3-level sealing system with EPDM gaskets and a special water drainage system.

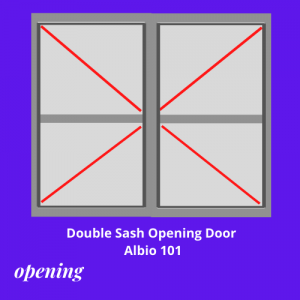

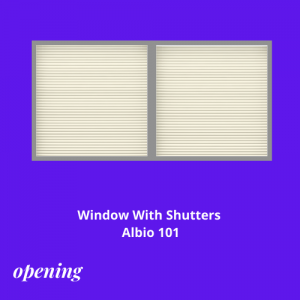

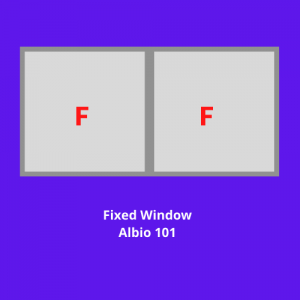

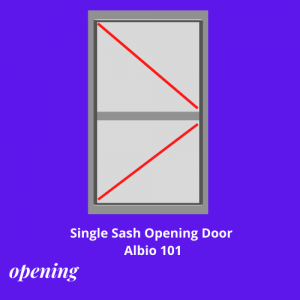

Doors, windows, windows with shutters, shop fronts. Fixed, tilt & turn.

Aluminum Alloy:EN AW 6063Τ6, EN 15088:2005
Powder coating:According to the European standard Qualicoat
Anodising:According to the European standard Qualanod
Tolerance:EN 12020-2
Gaskets:EPDM / EPDM Foam
Chamber:European, compatible with all the mechanisms
Glazing Thickness:5-32mm
Air Permeability:Double sash window 1.40m X 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000)
Single sash window 1.01m Χ 2.26m: Class 4 (EN 1026:2000 / EN 12207:2000)
Water Tightness:Double sash window 1.40m X 2.20m: Class 8A (EN 1027:2000 / EN 12208:2000)
Single sash window 1.01m Χ 2.26m: Class 8A (EN 1027:2000 / EN 12208:2000)
Frame dimensions:Width 51.8-180mm, height 68.3mm
Sash dimensions:Width 51.8-61.8mm, height 72-117mm
Resistance to wind load:Double sash window 1.40m X 2.20m: Class C4 (EN 12211:2000 / EN 12210:2000)
Multiple Locking MechanismNO

To download the system catalogue, you must be a registered user.  Pls Log in or Register.
(scroll to the top of the page).

To download the system certificates, you must be a registered user.  Pls Log in or Register.
(scroll to the top of the page).

Exalco Systems B2B

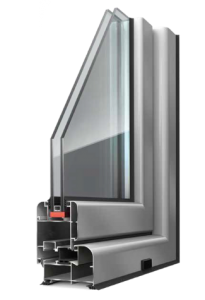

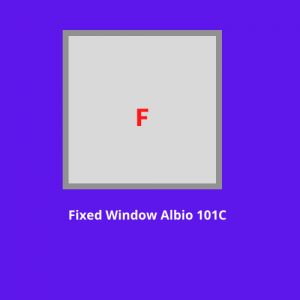

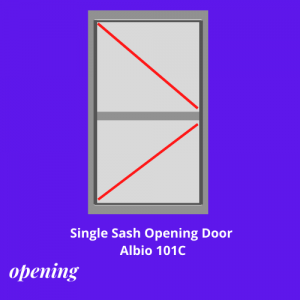

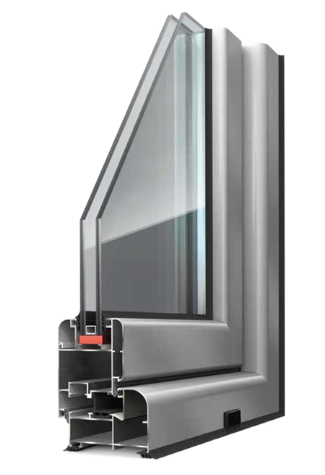

Exalco Albio 101 C offers a wide variety of profiles, suitable for all possible constructions. The system provides an oval-shaped profile and the possibility of applying various locking mechanisms.

Doors, windows, windows with shutters, shop fronts. fixed, tilt & turn.

Aluminum Alloy:EN AW 6063Τ6, EN 15088:2005
Powder coating:According to the European standard Qualicoat
Anodising:According to the European standard Qualanod
Tolerance:EN 12020-2
Gaskets:EPDM / EPDM Foam
Chamber:Compatible with multiple locking mechanisms
Glazing Thickness:5-32mm
Air Permeability:Double sash window 1.40m X 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000)
Single sash window 1.00m Χ 2.22m: Class 4 (EN 1026:2000 / EN 12207:2000)
Water Tightness:Double sash window 1.40m X 2.20m: Class E750 (EN 1027:2000 / EN 12208:2000)
Single sash window 1.00m Χ 2.22m: Class 8A (EN 1027:2000 / EN 12208:2000)
Frame dimensions:Width 51.8-180mm, height 68.3mm
Sash dimensions:Width 51.8-61.8mm, height 72-117mm
Resistance to wind load:Double sash window 1.40m X 2.20m: Class C4 (EN 12211:2000 / EN 12210:2000)
Single sash window 1.00m Χ 2.22m: Class C4 (EN 12211:2000 / EN 12210:2000)
Multiple Locking MechanismYES

To download the system catalogue, you must be a registered user.  Pls Log in or Register.
(scroll to the top of the page).

To download the system certificates, you must be a registered user.  Pls Log in or Register.
(scroll to the top of the page).

Exalco Systems B2B

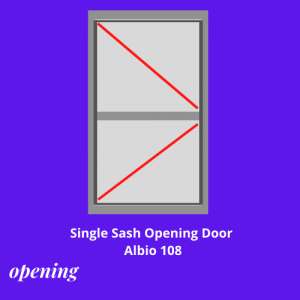

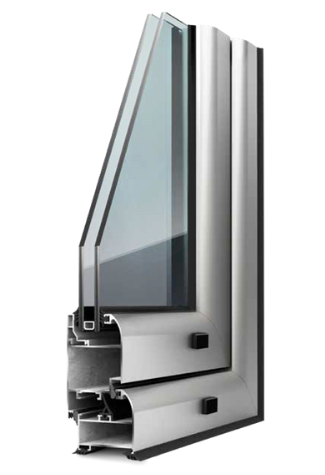

Exalco Albio 108 combines lightweight profiles and an excellent fit. Functionality and a high value for money/performance ratio are the main features of the system.

Exalco Albio 108 includes two different profile models (oval and flat) that meet individual preferences.

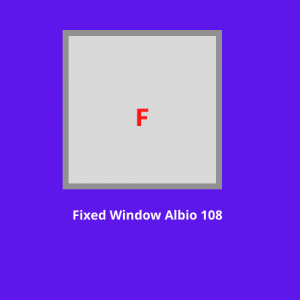

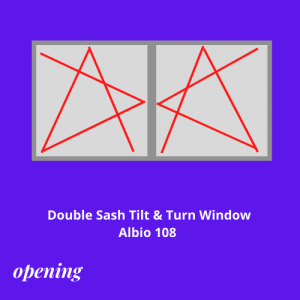

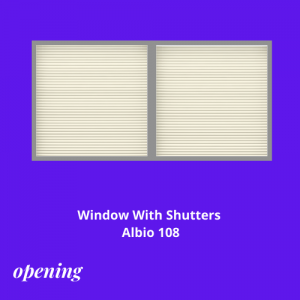

Doors, windows, windows with shutters, tilt & turn, shop fronts, fixed.

Aluminum Alloy:EN AW 6063Τ6, EN 15088:2005
Powder coating:According to the European standard Qualicoat
Anodising:According to the European standard Qualanod
Tolerance:EN 12020-2
Gaskets:EPDM / EPDM Foam
Chamber:European, compatible with all the mechanisms
Glazing Thickness:5-24mm
Air Permeability:Double sash window 1.40m X 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000)
Single sash window 1.01m X 1.28m: Class 4 (EN 1026:2000 / EN 12207:2000)
Water Tightness:Double sash window 1.40m X 2.20m: Class 8A (EN 1027:2000 / EN 12208:2000)
Single sash window 1.01m X 1.28m: Class 8A (EN 1027:2000 / EN 12208:2000)
Frame dimensions:Width 41-51mm, Height 51mm
Sash dimensions:Width 41-51mm, height 72-87mm
Resistance to wind load:Double sash window 1.40m X 2.20m: Class C3 (EN 12211:2000 / EN 12210:2000)
Single sash window 1.01m X 1.28m: Class C5 (EN 12211:2000 / EN 12210:2000)
Multiple Locking MechanismNO

To download the system catalogue, you must be a registered user.  Pls Log in or Register.
(scroll to the top of the page).

To download the system certificates, you must be a registered user.  Pls Log in or Register.
(scroll to the top of the page).

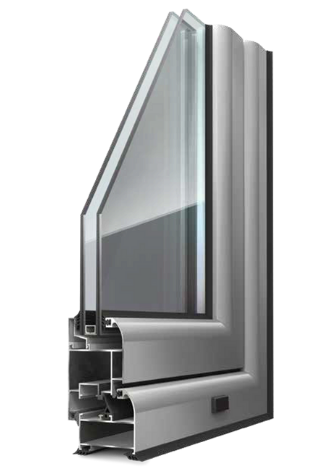

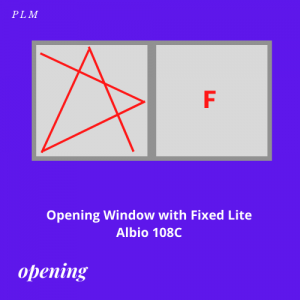

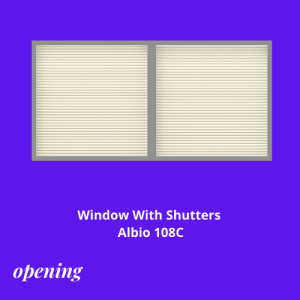

Exalco Albio 108C is distinguished by its impeccable assembly and high sealing and impermeability performance. The low weight and the elegant design of the profiles make the Albio 108C a reliable and economical option for modern projects.

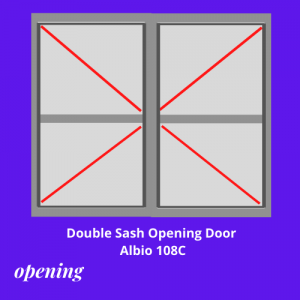

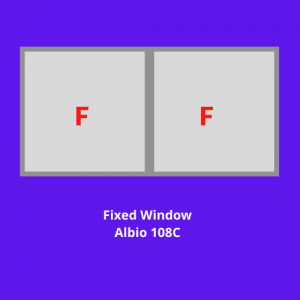

Doors, windows, windows tilt & turn, windows with shutters,  shop fronts. Fixed.

Aluminum Alloy:EN AW 6063Τ6, EN 15088:2005
Powder coating:According to the European standard Qualicoat
Anodising:According to the European standard Qualanod
Tolerance:EN 12020-2
Gaskets:EPDM / EPDM Foam
Chamber:Compatible with multiple locking mechanisms
Glazing Thickness:5-24mm
Air Permeability:Double sash window 1.40m X 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000)
Double sash window 1.40m X 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000)
Water Tightness:Double sash window 1.40m X 2.20m: Class 8Α (EN 1027:2000 / EN 12208:2000)
Single sash window 1.00m Χ 2.20m: Class 8A (EN 1027:2000 / EN 12208:2000)
Frame dimensions:Width 40.8-64mm, height 51.4-68.3mm
Sash dimensions:Width 51mm, height 84.6-96mm
Resistance to wind load:Double sash window 1.40m X 2.20m: Class C3 (EN 12211:2000 / EN 12210:2000)
Single sash window 1.00m Χ 2.20m: Class C3 (EN 12211:2000 / EN 12210:2000)
Multiple Locking MechanismYES
