Opening Thermal Brake

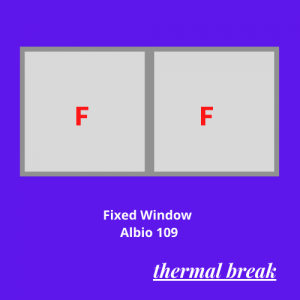

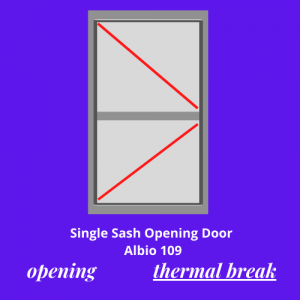

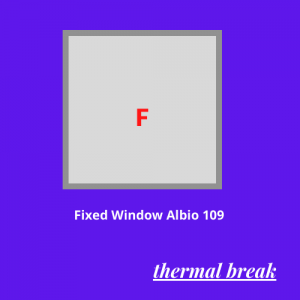

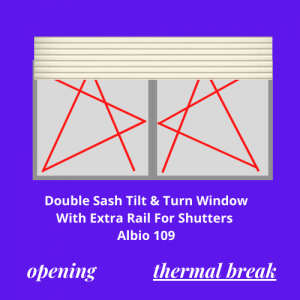

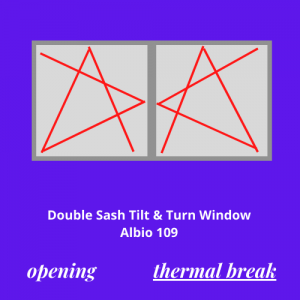

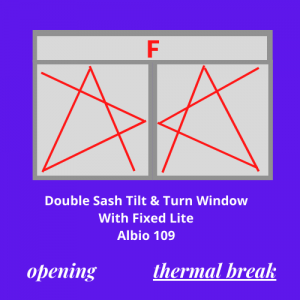

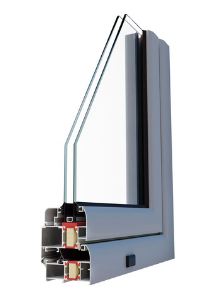

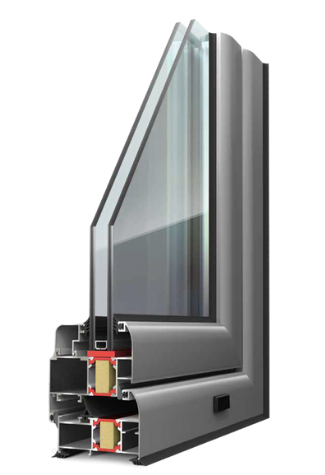

Exalco Albio 109 is based on the latest window technology and the highest building standards.
The System is specially designed to offer absolute protection against cold heat and sound insulation. With a beautiful finish, Exalco Albio 109 includes two models with different profiles, oval and classic, offering an excellent aesthetic result.
Doors, windows, windows with shutters, shop fronts. Fixed, tilt & turn, tilt & slide projecting.
Aluminum Alloy: | EN AW 6060Τ6, EN 15088:2005 |
---|---|
Powder coating: | According to the European standard Qualicoat |
Anodising: | According to the European standard Qualanod |
Tolerance: | EN 12020-2 |
Gaskets: | EPDM / EPDM Foam |
Chamber: | European, compatible with all the mechanisms |
Glazing Thickness: | 22-50mm |
Thermal- Break: | 20mm, 24mm (PA 6.6, 25%GF) |
Air Permeability: | Double sash window 1.40m X 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000) |
Single sash window 1.01m Χ 2.26m: Class 4 (EN 1026:2000 / EN 12207:2000) | |
Thermal transmittance coefficient: | 2.2 – 2.8 W/(m2K) (EN 10077-2:2003-10) |
Water Tightness: | Double sash window 1.40m X 2.20m: Class 9A (EN 1027:2000 / EN 12208:2000) |
Single sash window 1.01m Χ 2.26m: Class Ε1050 (EN 1027:2000 / EN 12208:2000) | |
Frame dimensions: | Width 72.7-100mm, height 53.1-70 mm |
Sash dimensions: | Width 75.7mm, height 74.3-96.1mm |
Weighted sound reduction index: | 45mm Double [(6+4)+24+(4+4)], RW = 43dB (ΕΛΟΤ 307.3) |
Resistance to wind load: | Double sash window 1.40m X 2.20m: Class C5 (EN 12211:2000 / EN 12210:2000) |
Single sash window 1.01m Χ 2.26m: Class C4 (EN 12211:2000 / EN 12210:2000) | |
Multiple Locking Mechanism | No |
To download the system catalogue, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
To download the system certificates, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).

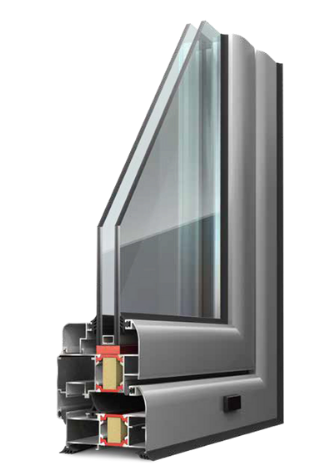

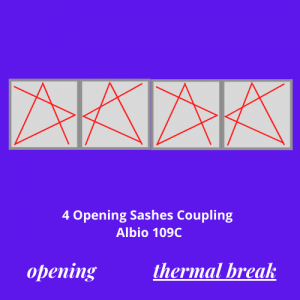

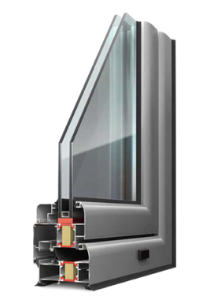

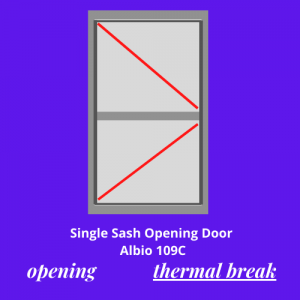

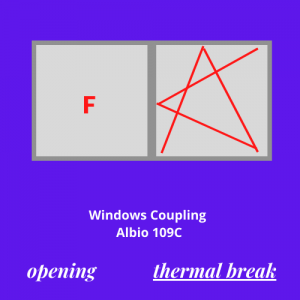

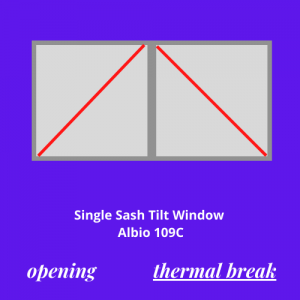

Exalco Albio 109C has been designed, taking into account the latest technological advances in window systems design. It has achieved high performance in terms of thermal insulation thanks to its 24 mm wide polyamide profiles.
The excellent results of the air permeability tests and the possibility of glazing up to 44 mm thick provide high acoustic insulation. Using a multi-perimeter locking mechanism in combination with thermal insulation makes the Exalco Albio 109C an safe system. The system also includes two different profile models, oval and classic.
Doors, windows, shop fronts. Fixed, tilt & turn, tilt & slide, projecting, etc
Aluminum Alloy: | EN AW 6060Τ6, EN 15088:2005 |
---|---|
Powder coating: | According to the European standard Qualicoat |
Anodising: | According to the European standard Qualanod |
Tolerance: | EN 12020-2 |
Gaskets: | EPDM / EPDM Foam |
Chamber: | Compatible with multiple locking mechanisms |
Glazing Thickness: | 17-38mm |
Thermal- Break: | 24mm (PA 6.6, 25%GF) |
Air Permeability: | Double sash window 1.40m X 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000) |
Single sash window 1.00m Χ 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000) | |
Thermal transmittance coefficient: | 2.2 – 2.8 W/(m2K) (EN 10077-2:2003-10) |
Water Tightness: | Double sash window 1.40m X 2.20m: Class Ε1050 (EN 1027:2000 / EN 12208:2000 |
Single sash window 1.00m Χ 2.20m: Class 8A (EN 1027:2000 / EN 12208:2000) | |
Frame dimensions: | Width 72.7-100mm, height 53.1-70 mm |
Sash dimensions: | Width 75.7mm, height 82.1-96mm |
Weighted sound reduction index: | |
Resistance to wind load: | Double sash window 1.40m X 2.20m: Class C4 (EN 12211:2000 / EN 12210:2000) |
Single sash window 1.00m Χ 2.20m: Class C4 (EN 12211:2000 / EN 12210:2000) | |
Multiple Locking Mechanism | YES |
To download the system catalogue, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
To download the system certificates, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).

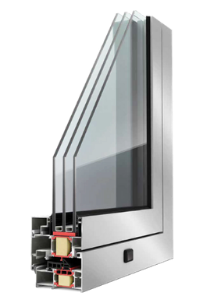

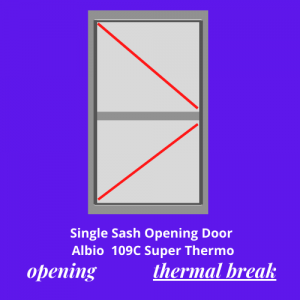

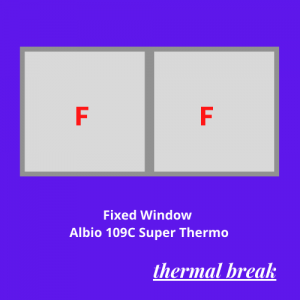

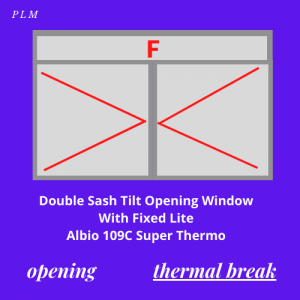

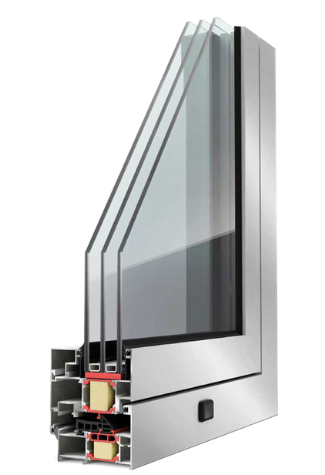

Exalco Albio 109C Super Thermo is EXALCO's flagship product in opening systems in terms of thermal insulation. The extremely low heat transfer coefficient has been achieved by using wider polyamide profiles (34mm), the insertion of new high insulation material, and the use of new gaskets.
Air permeability tests' excellent results and the possibility of using glazing up to 50 mm thick guarantee high acoustic insulation. The system includes a high-security mechanism known as a multi-perimeter locking mechanism.
Doors, windows, windows tilt & turn, shop fronts. Fixed.
Aluminum Alloy: | EN AW 6060Τ6, EN 15088:2005 |
---|---|
Powder coating: | According to the European standard Qualicoat |
Anodising: | According to the European standard Qualanod |
Tolerance: | EN 12020-2 |
Gaskets: | EPDM / EPDM Foam |
Chamber: | Compatible with multiple locking mechanisms |
Glazing Thickness: | 26-64mm |
Thermal- Break: | 34mm (PA 6.6, 25%GF) |
Air Permeability: | Double sash window 1.40m X 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000) |
Single sash window 1.00m Χ 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000) | |
Thermal transmittance coefficient: | 2.2 – 2.8 W/(m2K) (EN 10077-2:2003-10) |
Water Tightness: | Double sash window 1.40m X 2.20m: Class Ε1050 (EN 1027:2000 / EN 12208:2000 |
Frame dimensions: | Width 82.7-100mm, height 53.1-70 mm |
Sash dimensions: | Width 85.7mm, height 74.3-96.1mm |
Weighted sound reduction index: | |
Resistance to wind load: | Double sash window 1.40m X 2.20m: Class C4 (EN 12211:2000 / EN 12210:2000) |
Multiple Locking Mechanism | YES |
To download the system catalogue, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
To download the system certificates, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).

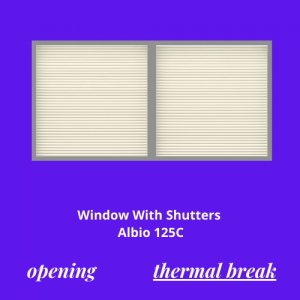

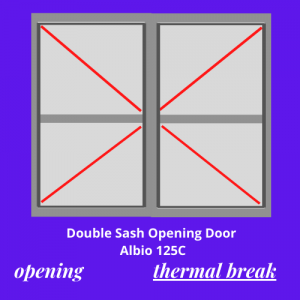

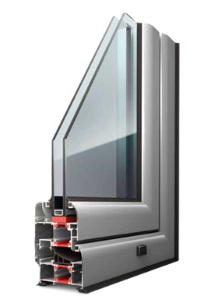

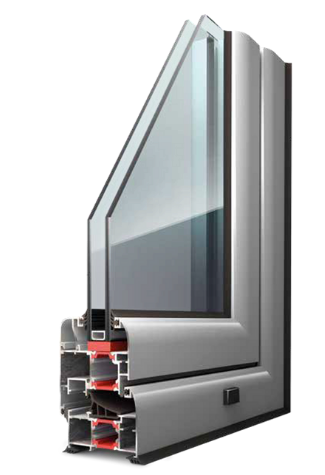

Exalco Albio 125C is distinguished by the timelessness of its design and its excellent performance in the field of thermal and acoustic insulation. Its aesthetics satisfy all needs, taking into account the advantage of the combination of the straight and curved door.
Doors, windows, windows tilt & turn, windows with shutters, shop fronts. Fixed.
Aluminum Alloy: | EN AW 6060Τ6, EN 15088:2005 |
---|---|
Powder coating: | According to the European standard Qualicoat |
Anodising: | According to the European standard Qualanod |
Tolerance: | EN 12020-2 |
Gaskets: | EPDM / EPDM Foam |
Chamber: | Compatible with multiple locking mechanisms |
Glazing Thickness: | 5-28mm |
Thermal- Break: | 22 mm, 24 mm, 25mm (PA 6.6, 25%GF |
Air Permeability: | Double sash window 1.40m X 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000) |
Thermal transmittance coefficient: | 2.5 – 5.1 W/(m2K) (EN 10077-2:2003-10) |
Water Tightness: | Double sash window 1.40m X 2.20m: Class Ε900 (EN 1027:2000 / EN 12208:2000) |
Frame dimensions: | Width 57.7-180mm, height 50.9mm |
Sash dimensions: | Width 66.2mm, height 78-102.2mm |
Weighted sound reduction index: | |
Resistance to wind load: | Double sash window 1.40m X 2.20m: Class C3 (EN 12211:2000 / EN 12210:2000) |
Multiple Locking Mechanism | YES |
To download the system catalogue, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
To download the system certificates, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).

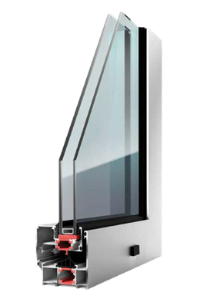

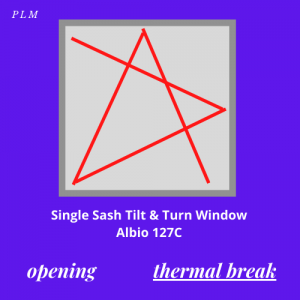

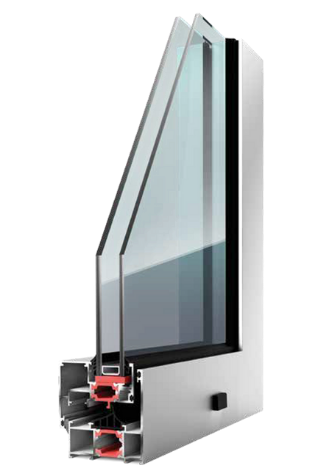

Exalco Albio127C is a new opening, tilt and turn system with special polyamides, which allows the creation of exquisite frames without visible sashes. The system design was such that the outer frame completely covered the chassis frame.
Albio 127C stands out for the elegance of the construction. It reduces the visible aluminum and allows a greater glazed surface, which, combined with the absence of visible joints, directly affects the aesthetics to both interior and exterior applications.
The system also includes profiles with larger polyamides that guarantee more significant energy savings, considerably reducing heating costs.
The system allows the installation of the multiple perimeter locking mechanisms, providing the maximum possible security.
Windows, Windows tilt & turn, shop fronts. Fixed.
Aluminum Alloy: | EN AW 6060Τ6, EN 15088:2005 |
---|---|
Powder coating: | According to the European standard Qualicoat |
Anodising: | According to the European standard Qualanod |
Tolerance: | EN 12020-2 |
Gaskets: | EPDM / EPDM Foam |
Chamber: | Compatible with multiple locking mechanisms |
Glazing Thickness: | 25mm |
Thermal- Break: | 24mm (PA 6.6, 25%GF |
Air Permeability: | Specimen dimensions: 1.40m X 1.40m: Class 4 (EN 12207:1999-11) |
Specimen dimensions: 1.50m X 1.50m: Class 4 (EN 12207:1999-11) | |
Thermal transmittance coefficient: | 2.42 – 3.01 W/(m2K) (EN 10077-2:2012) |
Water Tightness: | Specimen dimensions: 1.40m X 1.40m: Class 8Α (EN 12208:1999-11) |
Specimen dimensions: 1.50m X 1.50m: Class Ε1500 (EN 12208:1999-11) | |
Frame dimensions: | Width 66,5mm, height 72mm |
Sash dimensions: | Width 67,3mm, height 53,3mm |
Weighted sound reduction index: | |
Resistance to wind load: | Specimen dimensions: 1.40m X 1.40m: Class C4/B4 (EN 12210:1999-11/AC:2002-08) |
Specimen dimensions: 1.50m X 1.50m: Class C4/B4 (EN 12210:1999-11/AC:2002-08) | |
Multiple Locking Mechanism | YES |
To download the system catalogue, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
To download the system certificates, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).

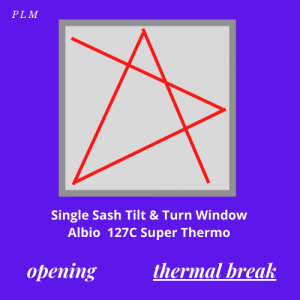

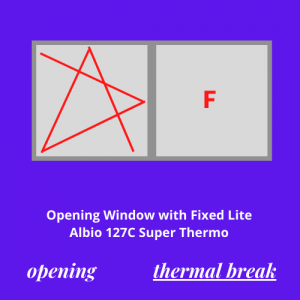

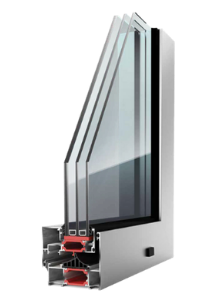

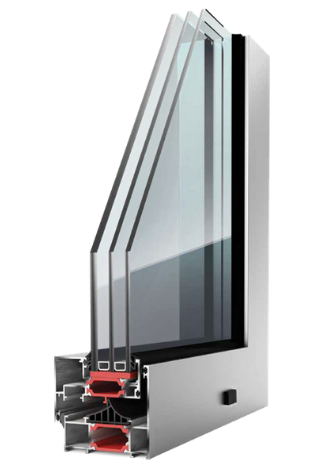

Exalco Albio 127C Super Thermo is a new tilt and turn-opening system with special polyamides, which allows the creation of exceptional style frames without visible sashes. The system allows the installation of the multiple perimeter locking mechanisms providing maximum security.
Windows, windows tilt & turn, shop fronts. Fixed.
Aluminum Alloy: | EN AW 6060Τ6, EN 15088:2005 |
---|---|
Powder coating: | According to the European standard Qualicoat |
Anodising: | According to the European standard Qualanod |
Tolerance: | EN 12020-2 |
Gaskets: | EPDM / EPDM Foam |
Chamber: | Compatible with multiple locking mechanisms |
Glazing Thickness: | 35mm |
Thermal- Break: | 34mm (PA 6.6, 25%GF |
Air Permeability: | Specimen dimensions: 1.40m X 1.40m : Class 4 (EN 12207:1999-11) |
Thermal transmittance coefficient: | 2.42 – 3.01 W/(m2K) (EN 10077-2:2012) |
Water Tightness: | Specimen dimensions: 1.40m X 1.40m : Class Ε900 (EN 12208:1999-11) |
Frame dimensions: | Width 76,5mm, height 72mm |
Sash dimensions: | Width 77,3mm, height 53,3mm |
Weighted sound reduction index: | |
Resistance to wind load: | Specimen dimensions: 1.40m X 1.40m : Class C4/B4 (EN 12210:1999-11/AC:2002-08) |
Multiple Locking Mechanism | YES |
To download the system catalogue, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
To download the system certificates, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).

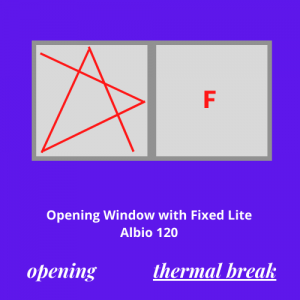

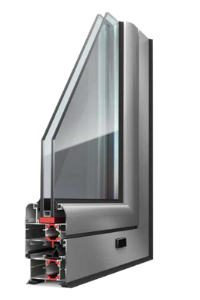

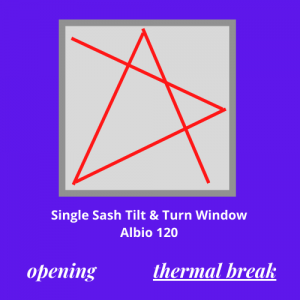

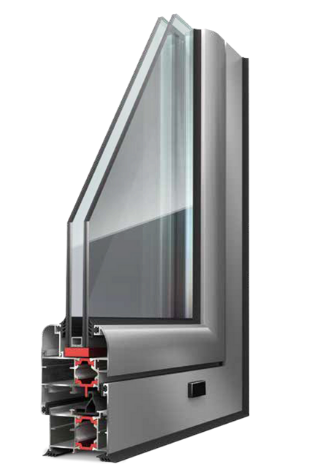

Exalco Albio 120 is a thermal break-opening system that combines the profile's small dimensions with good thermal insulation.
The possibility of combining straight and curved sashes, as well as the precise mounting of profiles and the simplicity of the design, complete the advantages of the series.
Windows, windows tilt & turn, shop fronts. Fixed.
Aluminum Alloy: | EN AW 6060Τ6, EN 15088:2005 |
---|---|
Powder coating: | According to the European standard Qualicoat |
Anodising: | According to the European standard Qualanod |
Tolerance: | EN 12020-2 |
Gaskets: | EPDM / EPDM Foam |
Chamber: | European, compatible with all the mechanisms |
Glazing Thickness: | 5-38mm |
Thermal- Break: | 16 mm, 18 mm, 19mm (PA 6.6, 25%GF) |
Air Permeability: | Double sash window 1.30m X 2.10m: Class 4 (EN 1026:2000 / EN 12207:2000) |
Double sash window 1.30m X 2.10m: Class 4 (EN 1026:2000 / EN 12207:2000) | |
Thermal transmittance coefficient: | 3.3 W/(m2K) (EN 10077-2:2003-10) |
Water Tightness: | Double sash window 1.30m X 2.10m: Class 5A (EN 1027:2000 / EN 12208:2000) |
Single sash window 0.96m Χ 2.12m: Class 7A (EN 1027:2000 / EN 12208:2000) | |
Frame dimensions: | Width 51.9mm, height 44-55 mm |
Sash dimensions: | Width 60.4mm, height 64.1-94mm |
Weighted sound reduction index: | |
Resistance to wind load: | Double sash window 1.30m X 2.10m: Class C3 (EN 12211:2000 / EN 12210:2000) |
Single sash window 0.96m Χ 2.12m: Class C2 (EN 12211:2000 / EN 12210:2000) | |
Multiple Locking Mechanism | NO |
To download the system catalogue, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
To download the system certificates, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).

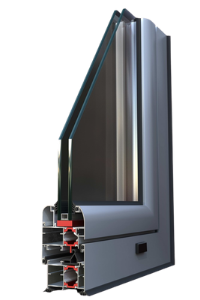

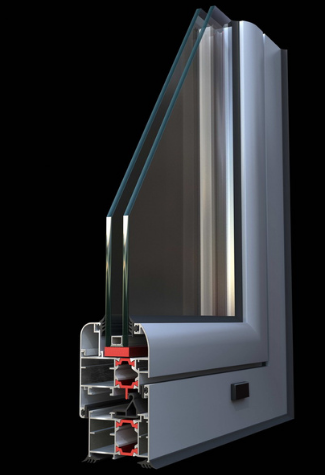

Exalco Albio 120C is an opening system with a thermal break that combines the profile's reduced dimensions with good thermal insulation.
The possibility of combining straight and curved sashes, as well as the precise mounting of the profiles and the simplicity of the design, complete the advantages of the series.
Windows, windows tilt & turn, shop fronts. Fixed.
Aluminum Alloy: | EN AW 6060Τ6, EN 15088:2005 |
---|---|
Powder coating: | According to the European standard Qualicoat |
Anodising: | According to the European standard Qualanod |
Tolerance: | EN 12020-2 |
Gaskets: | EPDM / EPDM Foam |
Chamber: | Compatible with multiple locking mechanisms |
Glazing Thickness: | 5-38mm |
Thermal- Break: | 16 mm, 18 mm, 19mm (PA 6.6, 25%GF) |
Air Permeability: | Double sash window 1.40m X 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000) |
Single sash window 1.00m Χ 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000) | |
Thermal transmittance coefficient: | 3.3 W/(m2K) (EN 10077-2:2003-10) |
Water Tightness: | Double sash window 1.40m X 2.20m: Class 9A (EN 1027:2000 / EN 12208:2000) |
Single sash window 1.00m Χ 2.20m: Class E750 (EN 1027:2000 / EN 12208:2000) | |
Frame dimensions: | Width 51.9mm, height 44-55 mm |
Sash dimensions: | Width 60.4mm, height 64.1-94mm |
Weighted sound reduction index: | |
Resistance to wind load: | Double sash window 1.40m X 2.20m: Class C3/B4 (EN 12211:2000 / EN 12210:2000) |
Single sash window 1.00m Χ 2.20m: Class C3 (EN 12211:2000 / EN 12210:2000) | |
Multiple Locking Mechanism | YES |
To download the system catalogue, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
To download the system certificates, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).

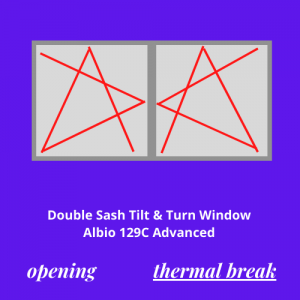

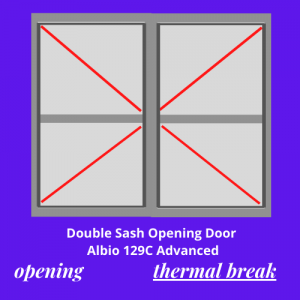

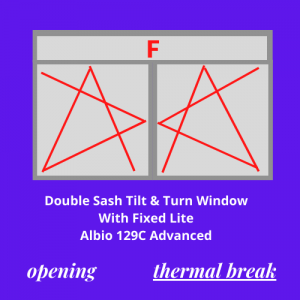

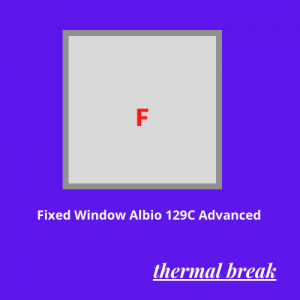

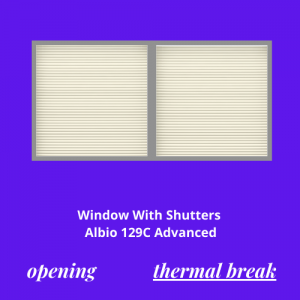

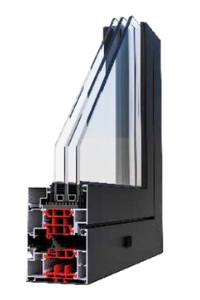

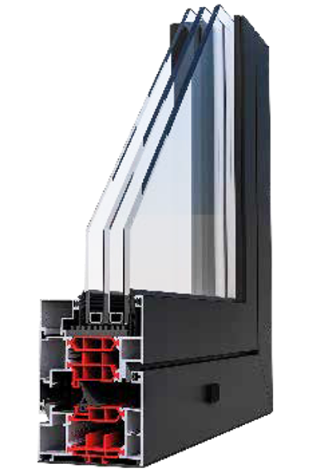

Exalco ALBIO 129C Advanced thermal opening system with multi-locking perimeter.
Albio 129C Advanced is the only sash system with a width of 78.3 mm that has high thermal insulation properties with Uf = 1.48 Ug = 1.0 W / (m2K) and Uw = 1.4 Ug = 1.0 W / (m2K), thanks to the use of special polyamides.
A special waterproof component has been used that replaces the central seal and provides better thermal insulation capacity.
The system's design with minimal straight lines provides a minimalist appearance and enhanced aesthetics. Also, it is possible to use a coplanar frame not only outside but also inside.
Doors, windows, windows tilt & turn, windows with shutters, shop fronts. Fixed.
Aluminum Alloy: | EN AW 6060Τ6, EN 15088:2005 |
---|---|
Powder coating: | According to the European standard Qualicoat |
Anodising: | According to the European standard Qualanod |
Tolerance: | EN 12020-2 |
Gaskets: | |
Chamber: | |
Glazing Thickness: | |
Thermal- Break: | |
Air Permeability: | |
Thermal transmittance coefficient: | |
Water Tightness: | |
Frame dimensions: | |
Sash dimensions: | |
Weighted sound reduction index: | |
Resistance to wind load: | |
Multiple Locking Mechanism |
To download the system catalogue, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
To download the system certificates, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
